Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks

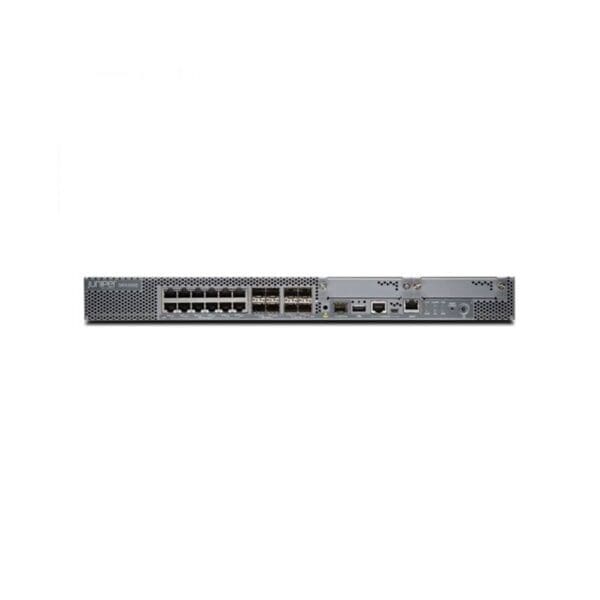

Model :SRX1500 Services Gateway
Packaged Quantity :1
Chassis
Airflow Direction :Front to back airflow
RAM
Installed Size :16 GB
Hard Drive
Type :SSD
Form Factor :mSATA
Form Factor (metric) :mSATA
Capacity :16 GB
Hard Drive (2nd)
Type :SSD
Capacity :120 GB
Performance
Performance :VPN throughput (IPSec): 1 Gbps, Application control (AVC) throughput: 3 Gbps, Connection rate: 50000 connections per second, Firewall throughput (64-byte packet size): 2 Mpps, Firewall throughput (1518-byte packet size): 10 Gbps, Firewall throughput (IMIX): 5 Gbps
Capacity
Capacity :Maximum number of NAT rules: 8000, IPSec VPN tunnels: 2000, Concurrent IPSec sessions: 512000, Security policies: 16000, IPv4 routing table entries: 2000000, MAC addresses: 64000, Virtual routers: 512, Virtual interfaces (VLANs): 1000, GRE tunnels: 2000, Security zones: 512, IPv6 routing table entries: 2000000
Networking
Type :Security appliance
Form Factor :Rack-mountable
Ports Qty :20
Connectivity Technology :Wired
Data Link Protocol :Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet, Ethernet
Routing Protocol :OSPFv3, RIP-1, BGP, IGMPv2, VRRP, Static IP routing, IGMP, PIM-SM, PIM-SSM, ECMP, PIM-DM, MSDP, DVMRP, OSPF, RIP-2
Network / Transport Protocol :DHCP, IPSec, DNS, PPPoE, DDNS
Remote Management Protocol :SSH, HTTP, Telnet, SNMP, CLI
Features :IPSec NAT-Traversal (NAT-T), J-Flow, Inspect SSL Encrypted Traffic, NAT support, Dead Peer Detection (DPD), Anti-virus protection, Spanning Tree Protocol (STP) support, Firewall protection, Quality of Service (QoS), Anti-spam protection, Front to back airflow, URL filtering, VPN support, Rapid Spanning Tree Protocol (RSTP) support, PAT support, LLDP support, Generic Routing Encapsulation (GRE), Weighted Random Early Detection (WRED), IPv6 support, DHCP relay, DDos attack prevention, DHCP server, DHCP client, Intrusion Prevention System (IPS), IPv4 support, DiffServ Code Point (DSCP) support
Compliant Standards :IEEE 802.1p, IEEE 802.1x
IP Telephony
VoIP Protocols :SDP
Expansion Slots
Expansion Slots :2 (total) / 2 (free) x expansion slot
Interface Provided
Interfaces :1 x console – RJ-45, 1 x management – SFP (mini-GBIC), 12 x 1000Base-T – RJ-45, 1 x USB 2.0 – Type A, 1 x 1000Base-T (management) – RJ-45, 1 x mini-USB, 4 x 10Gb Ethernet – SFP+, 4 x 1000Base-X – SFP (mini-GBIC)
OS Provided
Type :JUNOS
Software
Type :Junos Software Base
Power Device
Type :External power adapter
Power Redundancy :Optional
Installed Qty :1
Max Supported Qty :2
Nominal Voltage :AC 120/230 V
Frequency Required :50/60 hertz
Power Consumption Operational :150 watt
Miscellaneous
Color Category :Gray
Height (Rack Units) :1
Encryption Algorithm :SHA-1, DES, Triple DES, PKI, MD5, IKE, IKEv2, 256-bit SHA, SSL, 256-bit AES
Authentication Method :Secure Shell (SSH), Active Directory, X.509 certificates
MTBF :85,787 Hours
Compliant Standards :RoHS2, FCC Class A certified
Dimensions & Weight
Width :17.5 inch
Depth :18.2 inch
Height :1.7 inch
Weight :16.09 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :10 – 90% (non-condensing)
