Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks

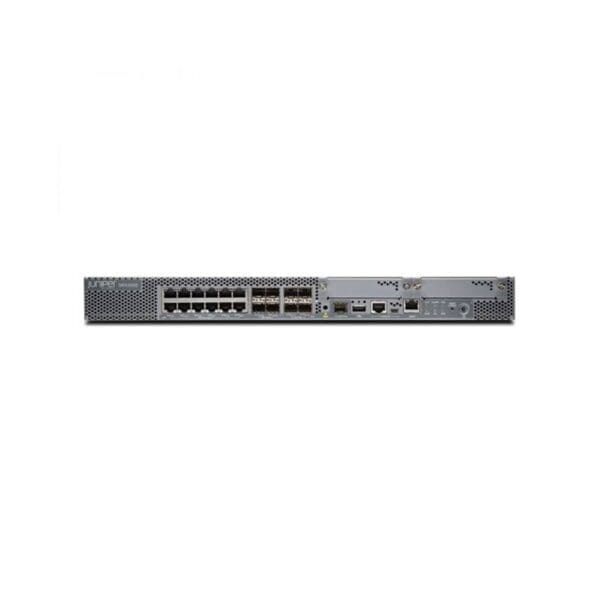

Model :SRX1500 Services Gateway
Packaged Quantity :1
Chassis
Airflow Direction :Front to back airflow
RAM
Installed Size :16 GB
Hard Drive
Type :SSD
Form Factor :mSATA
Form Factor (metric) :mSATA
Capacity :16 GB
Hard Drive (2nd)
Type :SSD
Capacity :120 GB
Performance
Performance :VPN throughput (IPSec): 1 Gbps, Firewall throughput (64-byte packet size): 2 Mpps, Firewall throughput (IMIX): 5 Gbps, Application control (AVC) throughput: 3 Gbps, Connection rate: 50000 connections per second, Firewall throughput (1518-byte packet size): 10 Gbps
Capacity
Capacity :Security zones: 512, GRE tunnels: 2000, IPSec VPN tunnels: 2000, Security policies: 16000, MAC addresses: 64000, Maximum number of NAT rules: 8000, Virtual interfaces (VLANs): 1000, IPv6 routing table entries: 2000000, IPv4 routing table entries: 2000000, Virtual routers: 512, Concurrent IPSec sessions: 512000
Networking
Type :Security appliance
Form Factor :Rack-mountable
Ports Qty :20
Connectivity Technology :Wired
Data Link Protocol :Fast Ethernet, 10 Gigabit Ethernet, Ethernet, Gigabit Ethernet
Routing Protocol :IGMPv2, IGMP, RIP-1, RIP-2, OSPFv3, PIM-DM, ECMP, PIM-SM, DVMRP, PIM-SSM, VRRP, Static IP routing, MSDP, OSPF, BGP
Network / Transport Protocol :DDNS, PPPoE, IPSec, DNS, DHCP
Remote Management Protocol :SNMP, CLI, Telnet, SSH, HTTP
Features :NAT support, Weighted Random Early Detection (WRED), Intrusion Prevention System (IPS), Quality of Service (QoS), VPN support, Inspect SSL Encrypted Traffic, IPv6 support, Rapid Spanning Tree Protocol (RSTP) support, DHCP relay, PAT support, Generic Routing Encapsulation (GRE), URL filtering, Spanning Tree Protocol (STP) support, DiffServ Code Point (DSCP) support, J-Flow, Dead Peer Detection (DPD), Anti-spam protection, Front to back airflow, Anti-virus protection, DDos attack prevention, DHCP client, IPv4 support, DHCP server, LLDP support, IPSec NAT-Traversal (NAT-T), Firewall protection
Compliant Standards :IEEE 802.1x, IEEE 802.1p
IP Telephony
VoIP Protocols :SDP
Expansion Slots
Expansion Slots :2 (total) / 2 (free) x expansion slot
Interface Provided
Interfaces :4 x 1000Base-X – SFP (mini-GBIC), 1 x mini-USB, 4 x 10Gb Ethernet – SFP+, 12 x 1000Base-T – RJ-45, 1 x USB 2.0 – Type A, 1 x 1000Base-T (management) – RJ-45, 1 x management – SFP (mini-GBIC), 1 x console – RJ-45
OS Provided
Type :JUNOS
Software
Type :Junos Software Base
Power Device
Type :External power adapter
Power Redundancy :Optional
Installed Qty :1
Max Supported Qty :2
Nominal Voltage :DC -48 V
Power Consumption Operational :150 watt
Miscellaneous
Color Category :Gray
Height (Rack Units) :1
Encryption Algorithm :Triple DES, 256-bit SHA, SSL, SHA-1, MD5, DES, PKI, IKEv2, IKE, 256-bit AES
Authentication Method :X.509 certificates, Active Directory, Secure Shell (SSH)
MTBF :85,787 Hours
Compliant Standards :FCC Class A certified, RoHS2
Dimensions & Weight
Width :17.5 inch
Depth :18.2 inch
Height :1.7 inch
Weight :16.09 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :10 – 90% (non-condensing)
