Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks

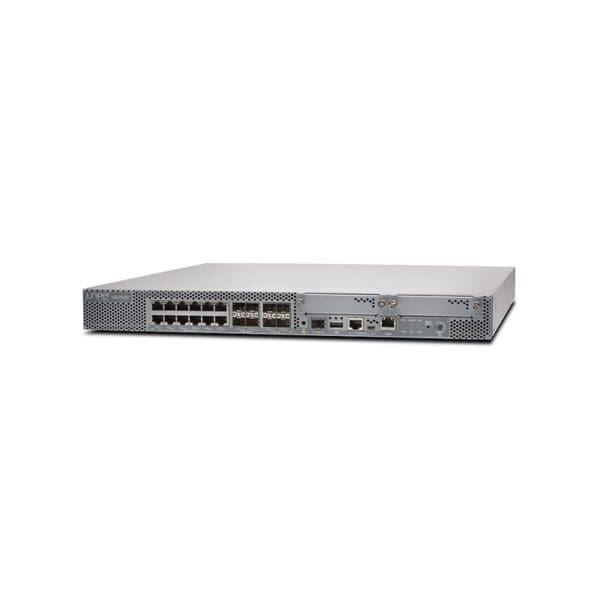

Model :SRX1500 Services Gateway
Packaged Quantity :1
Chassis
Airflow Direction :Front to back airflow
RAM
Installed Size :16 GB
Hard Drive
Type :SSD
Form Factor :mSATA
Form Factor (metric) :mSATA
Capacity :16 GB
Hard Drive (2nd)
Type :SSD
Capacity :120 GB
Performance
Performance :Firewall throughput (64-byte packet size): 2 Mpps, Connection rate: 50000 connections per second, VPN throughput (IPSec): 1 Gbps, Firewall throughput (1518-byte packet size): 10 Gbps, Firewall throughput (IMIX): 5 Gbps, Application control (AVC) throughput: 3 Gbps
Capacity
Capacity :GRE tunnels: 2000, MAC addresses: 64000, IPv6 routing table entries: 2000000, IPv4 routing table entries: 2000000, Virtual routers: 512, IPSec VPN tunnels: 2000, Virtual interfaces (VLANs): 1000, Security policies: 16000, Maximum number of NAT rules: 8000, Concurrent IPSec sessions: 512000, Security zones: 512
Networking
Type :Security appliance
Form Factor :Rack-mountable
Ports Qty :20
Connectivity Technology :Wired
Data Link Protocol :Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet
Routing Protocol :PIM-DM, RIP-2, IGMPv2, IGMP, MSDP, DVMRP, Static IP routing, RIP-1, PIM-SSM, BGP, OSPF, PIM-SM, OSPFv3, VRRP, ECMP
Network / Transport Protocol :PPPoE, IPSec, DHCP, DNS, DDNS
Remote Management Protocol :SSH, HTTP, Telnet, SNMP, CLI
Features :Inspect SSL Encrypted Traffic, PAT support, J-Flow, DHCP relay, Firewall protection, Spanning Tree Protocol (STP) support, LLDP support, Front to back airflow, Anti-virus protection, Anti-spam protection, IPv6 support, DHCP client, IPv4 support, Rapid Spanning Tree Protocol (RSTP) support, Weighted Random Early Detection (WRED), URL filtering, DHCP server, VPN support, Dead Peer Detection (DPD), IPSec NAT-Traversal (NAT-T), DiffServ Code Point (DSCP) support, Generic Routing Encapsulation (GRE), NAT support, Intrusion Prevention System (IPS), Quality of Service (QoS), DDos attack prevention
Compliant Standards :IEEE 802.1p, IEEE 802.1x
IP Telephony
VoIP Protocols :SDP
Expansion Slots
Expansion Slots :2 (total) / 2 (free) x expansion slot
Interface Provided
Interfaces :1 x USB 2.0 – Type A, 12 x 1000Base-T – RJ-45, 4 x 10Gb Ethernet – SFP+, 4 x 1000Base-X – SFP (mini-GBIC), 1 x mini-USB, 1 x console – RJ-45, 1 x 1000Base-T (management) – RJ-45, 1 x management – SFP (mini-GBIC)
OS Provided
Type :JUNOS
Software
Type :Junos Software Enhanced
Power Device
Type :External power adapter
Power Redundancy :Optional
Installed Qty :1
Max Supported Qty :2
Nominal Voltage :AC 120/230 V
Frequency Required :50/60 hertz
Power Consumption Operational :150 watt
Miscellaneous
Color Category :Gray
Height (Rack Units) :1
Encryption Algorithm :PKI, MD5, 256-bit AES, SSL, Triple DES, SHA-1, DES, IKE, IKEv2, 256-bit SHA
Authentication Method :Secure Shell (SSH), Active Directory, X.509 certificates
MTBF :85,787 Hours
Compliant Standards :FCC Class A certified, RoHS2
Dimensions & Weight
Width :17.5 inch
Depth :18.2 inch
Height :1.7 inch
Weight :16.09 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :10 – 90% (non-condensing)
