Manufacturer :Netscreen
Brand :Juniper
Product Line :Juniper Networks

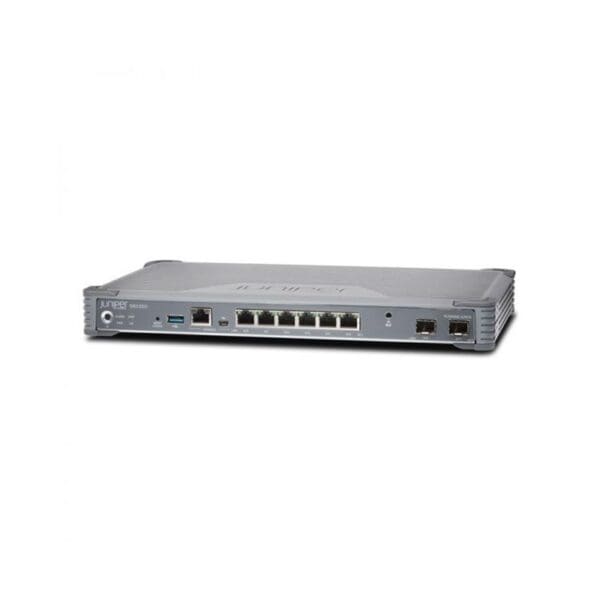

Model :SRX300 Services Gateway
Packaged Quantity :1
Flash Memory
Installed Size :8 GB
Performance
Performance :VPN throughput (IPSec): 80 Mbps, Firewall throughput (64-byte packet size): 200 Kpps, Firewall throughput (1518-byte packet size): 1 Gbps, Firewall throughput (IMIX): 500 Mbps, VPN throughput (1400-byte packet size): 250 Mbps, Connection rate: 5000 connections per second, IPS throughput: 100 Mbps
Capacity
Capacity :Virtual interfaces (VLANs): 16, Maximum number of NAT rules: 1000, MAC addresses: 15000, Security policies: 1000, Security zones: 16, IPv4 routing table entries: 256000, Concurrent sessions: 64000, IPSec VPN tunnels: 256, Virtual routers: 32, IPv6 routing table entries: 256000, Maximum number of users: 50, GRE tunnels: 256
Networking
Type :Security appliance
Form Factor :Desktop
Ports Qty :8
Connectivity Technology :Wired
Data Link Protocol :MLPPP, MLFR, Frame Relay, Ethernet, Fast Ethernet, PPP, Gigabit Ethernet, HDLC
Routing Protocol :OSPFv3, PIM-SSM, VRRP, MSDP, RIP-1, BGP, OSPF, IGMPv2, IGMP, ECMP, PIM-SM, PIM-DM, IS-IS, DVMRP, RIP-2, MPLS, Static IP routing
Network / Transport Protocol :PPPoE, DHCP, DNS, RSVP, IPSec, DDNS
Remote Management Protocol :SNMP, HTTP, CLI, Telnet, SSH
Features :MACsec support, DHCP relay, VPN support, Generic Routing Encapsulation (GRE), DiffServ Code Point (DSCP) support, Intrusion Prevention System (IPS), Anti-virus protection, Quality of Service (QoS), URL filtering, Label Distribution Protocol (LDP), Rapid Spanning Tree Protocol (RSTP) support, IPv6 support, DHCP client, Dead Peer Detection (DPD), Firewall protection, PAT support, IPSec NAT-Traversal (NAT-T), Virtual Private LAN Service (VPLS), Inspect SSL Encrypted Traffic, DDos attack prevention, LLDP support, Spanning Tree Protocol (STP) support, IPv4 support, DHCP server, J-Flow, Weighted Random Early Detection (WRED), Anti-spam protection, NAT support, Fanless
Compliant Standards :IEEE 802.1p, IEEE 802.1x
IP Telephony
VoIP Protocols :SDP
Interface Provided
Interfaces :1 x USB 2.0 – Type A, 2 x 1000Base-X – SFP (mini-GBIC), 1 x console – RJ-45, 6 x 1000Base-T – RJ-45, 1 x mini-USB
OS Provided
Type :JUNOS
Power Device
Type :External power adapter
Power Consumption Operational :15.4 watt
Miscellaneous
Encryption Algorithm :IKEv2, Triple DES, PKI, SSL, DES, 256-bit SHA, MD5, 256-bit AES, IKE, SHA-1
Authentication Method :Secure Shell (SSH), X.509 certificates
Compliant Standards :RoHS2, FCC Class A certified
Dimensions & Weight
Width :12.6 inch
Depth :7.5 inch
Height :1.4 inch
Weight :4.37 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :10 – 90% (non-condensing)
