Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks

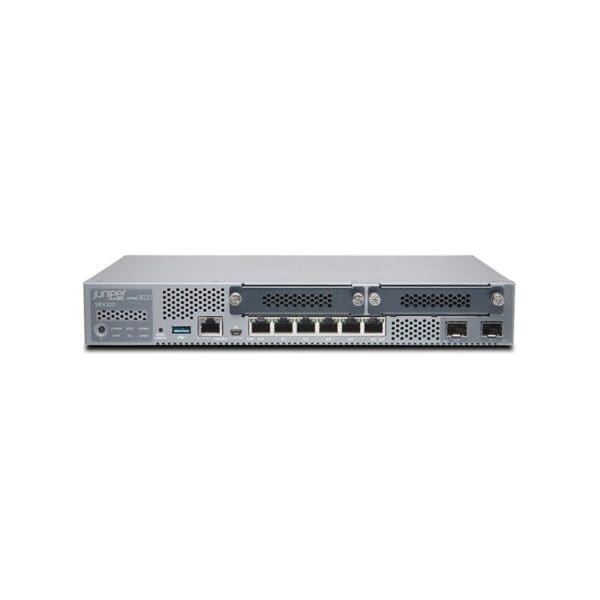

Model :SRX320 Services Gateway
Packaged Quantity :1
Chassis
Airflow Direction :Front to back airflow
RAM
Installed Size :4 GB
Flash Memory
Installed Size :8 GB, 8 GB
Performance
Performance :Connection rate: 5000 connections per second, Firewall throughput (1518-byte packet size): 1 Gbps, IPS throughput: 100 Mbps, Firewall throughput (64-byte packet size): 200 Kpps, Firewall throughput (IMIX): 500 Mbps, VPN throughput (1400-byte packet size): 250 Mbps, VPN throughput (IPSec): 80 Mbps
Capacity
Capacity :IPSec VPN tunnels: 256, Virtual routers: 32, Security policies: 1000, IPv4 routing table entries: 256000, GRE tunnels: 256, Concurrent sessions: 64000, Maximum number of NAT rules: 1000, Virtual interfaces (VLANs): 128, IPv6 routing table entries: 256000, Maximum number of users: 50, Security zones: 16, MAC addresses: 15000
Networking
Type :Security appliance
Form Factor :Desktop
Ports Qty :8
Connectivity Technology :Wired
Data Link Protocol :MLFR, Frame Relay, Fast Ethernet, PPP, Ethernet, Gigabit Ethernet, HDLC, MLPPP
Routing Protocol :DVMRP, MSDP, VRRP, BGP, Static IP routing, PIM-SSM, OSPF, PIM-SM, IS-IS, IGMP, OSPFv3, RIP-1, PIM-DM, IGMPv2, RIP-2, ECMP, MPLS
Network / Transport Protocol :DHCP, DDNS, RSVP, IPSec, PPPoE, DNS
Remote Management Protocol :CLI, SNMP, SSH, Telnet, HTTP
Power Over Ethernet (PoE) :PoE+
Features :J-Flow, DHCP server, URL filtering, Front to back airflow, Spanning Tree Protocol (STP) support, Weighted Random Early Detection (WRED), Firewall protection, VPN support, Inspect SSL Encrypted Traffic, PAT support, Intrusion Prevention System (IPS), MACsec support, Anti-spam protection, Rapid Spanning Tree Protocol (RSTP) support, NAT support, Quality of Service (QoS), IPv4 support, Anti-virus protection, Virtual Private LAN Service (VPLS), Dead Peer Detection (DPD), Label Distribution Protocol (LDP), LLDP support, DDos attack prevention, DHCP relay, DiffServ Code Point (DSCP) support, DHCP client, Generic Routing Encapsulation (GRE), IPSec NAT-Traversal (NAT-T), IPv6 support
Compliant Standards :IEEE 802.1p, IEEE 802.1x
IP Telephony
VoIP Protocols :SDP
Expansion Slots
Expansion Slots :2 (total) / 2 (free) x expansion slot
Interface Provided
Interfaces :1 x console – RJ-45, 1 x mini-USB, 2 x 1000Base-X – SFP (mini-GBIC), 1 x USB 2.0 – Type A, 6 x 1000Base-T (PoE+) – RJ-45
OS Provided
Type :JUNOS
Power Device
Type :External power adapter
Power Consumption Operational :27 watt
Miscellaneous
TAA Compliant :Yes
Encryption Algorithm :256-bit SHA, Triple DES, MD5, IKE, PKI, SHA-1, IKEv2, SSL, DES, 256-bit AES
Authentication Method :Secure Shell (SSH), X.509 certificates
Compliant Standards :FCC Class A certified, RoHS2
Dimensions & Weight
Width :11.8 inch
Depth :7.5 inch
Height :1.7 inch
Weight :3.33 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :10 – 90% (non-condensing)
