Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks

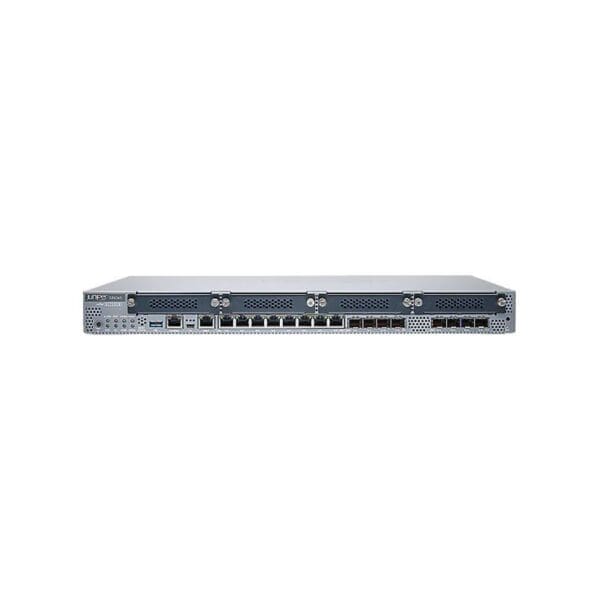

Model :SRX340 Services Gateway
Packaged Quantity :1
Chassis
Airflow Direction :Front to back airflow
RAM
Installed Size :4 GB
Flash Memory
Installed Size :8 GB, 8 GB
Performance
Performance :Firewall throughput (64-byte packet size): 350 Kpps, IPS throughput: 250 Mbps, VPN throughput (1400-byte packet size): 500 Mbps, Connection rate: 10000 connections per second, Firewall throughput (IMIX): 1 Gbps, VPN throughput (IPSec): 150 Mbps, Firewall throughput (1518-byte packet size): 3 Gbps
Capacity
Capacity :Maximum number of NAT rules: 2000, Maximum number of users: 100, GRE tunnels: 512, Virtual routers: 64, IPSec VPN tunnels: 1024, Security zones: 64, Concurrent sessions: 256000, MAC addresses: 15000, Virtual interfaces (VLANs): 2000, Security policies: 2000, IPv6 routing table entries: 600000, IPv4 routing table entries: 1000000
Networking
Type :Security appliance
Form Factor :Rack-mountable
Ports Qty :16
Connectivity Technology :Wired
Data Link Protocol :PPP, HDLC, Frame Relay, MLPPP, MLFR, Ethernet, Gigabit Ethernet, Fast Ethernet
Routing Protocol :IS-IS, Static IP routing, RIP-1, VRRP, RIP-2, MSDP, PIM-SSM, PIM-SM, IGMPv2, DVMRP, OSPF, IGMP, ECMP, OSPFv3, PIM-DM, MPLS, BGP
Network / Transport Protocol :DDNS, DNS, IPSec, RSVP, PPPoE, DHCP
Remote Management Protocol :Telnet, CLI, SSH, HTTP, SNMP
Features :LLDP support,
