Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks

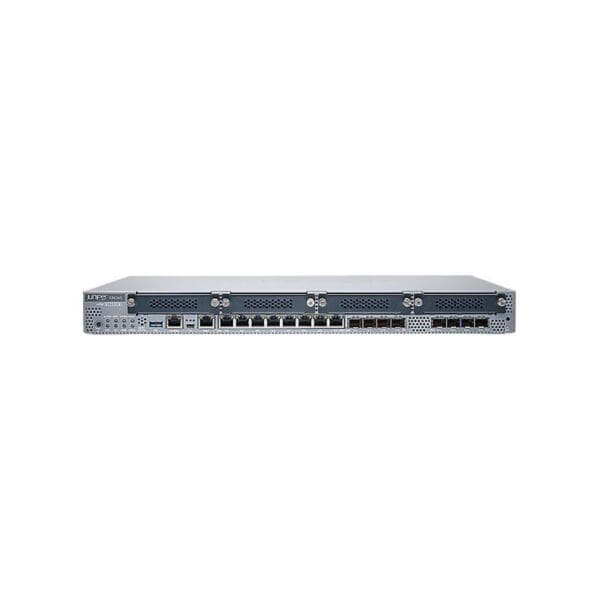

Model :SRX340 Services Gateway
Packaged Quantity :1
Chassis
Airflow Direction :Front to back airflow
RAM
Installed Size :4 GB
Flash Memory
Installed Size :8 GB, 8 GB
Performance
Performance :VPN throughput (IPSec): 150 Mbps, Firewall throughput (64-byte packet size): 350 Kpps, VPN throughput (1400-byte packet size): 500 Mbps, IPS throughput: 250 Mbps, Firewall throughput (1518-byte packet size): 3 Gbps, Firewall throughput (IMIX): 1 Gbps, Connection rate: 10000 connections per second
Capacity
Capacity :Security zones: 64, MAC addresses: 15000, Concurrent sessions: 256000, IPv4 routing table entries: 1000000, Security policies: 2000, Virtual interfaces (VLANs): 2000, GRE tunnels: 512, Maximum number of NAT rules: 2000, Virtual routers: 64, IPv6 routing table entries: 600000, Maximum number of users: 100, IPSec VPN tunnels: 1024
Networking
Type :Security appliance
Form Factor :Rack-mountable
Ports Qty :16
Connectivity Technology :Wired
Data Link Protocol :Frame Relay, Fast Ethernet, Ethernet, MLFR, PPP, MLPPP, HDLC, Gigabit Ethernet
Routing Protocol :Static IP routing, IGMP, PIM-SM, IGMPv2, MPLS, OSPF, OSPFv3, BGP, RIP-1, VRRP, PIM-SSM, PIM-DM, DVMRP, RIP-2, IS-IS, MSDP, ECMP
Network / Transport Protocol :DHCP, RSVP, PPPoE, DDNS, IPSec, DNS
Remote Management Protocol :CLI, Telnet, SSH, SNMP, HTTP
Features :Intrusion Prevention System (IPS), Anti-virus protection, Anti-spam protection, DHCP server, URL filtering, Weighted Random Early Detection (WRED), MACsec support, Dead Peer Detection (DPD), DHCP relay, DiffServ Code Point (DSCP) support, Virtual Private LAN Service (VPLS), DDos attack prevention, Rapid Spanning Tree Protocol (RSTP) support, NAT support, DHCP client, Label Distribution Protocol (LDP), Quality of Service (QoS), Firewall protection, Spanning Tree Protocol (STP) support, Inspect SSL Encrypted Traffic, Front to back airflow, PAT support, IPv6 support, VPN support, Generic Routing Encapsulation (GRE), J-Flow, IPSec NAT-Traversal (NAT-T), IPv4 support, LLDP support
Compliant Standards :IEEE 802.1x, IEEE 802.1p
IP Telephony
VoIP Protocols :SDP
Expansion Slots
Expansion Slots :4 (total) / 4 (free) x expansion slot
Interface Provided
Interfaces :1 x USB 2.0 – Type A, 8 x 1000Base-X – SFP (mini-GBIC), 1 x mini-USB, 1 x management – RJ-45, 1 x console – RJ-45, 8 x 1000Base-T – RJ-45
OS Provided
Type :JUNOS
Software
Type :Junos Software Enhanced
Power Device
Type :Internal power supply
Power Consumption Operational :122 watt
Miscellaneous
Height (Rack Units) :1
Encryption Algorithm :Triple DES, IKEv2, PKI, MD5, 256-bit SHA, DES, 256-bit AES, SSL, IKE, SHA-1
Authentication Method :Secure Shell (SSH), X.509 certificates
Compliant Standards :RoHS2, FCC Class A certified
Dimensions & Weight
Width :17.4 inch
Depth :14.6 inch
Height :1.7 inch
Weight :10.8 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :10 – 90% (non-condensing)
