Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks

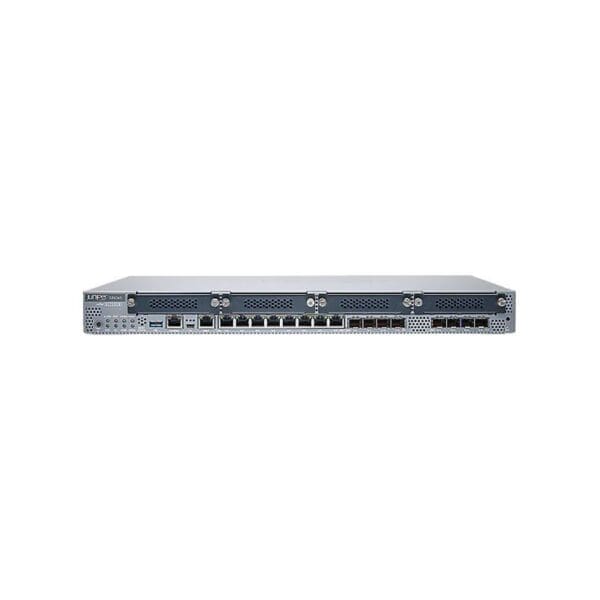

Model :SRX345 Services Gateway
Packaged Quantity :1
Chassis
Airflow Direction :Front to back airflow
RAM
Installed Size :4 GB
Flash Memory
Installed Size :8 GB
Hard Drive
Type :SSD
Performance
Performance :Firewall throughput (1518-byte UDP): 5 Gbps, Application control (AVC) throughput: 1.7 Gbps, Firewall throughput (64-byte UDP): 550 Kpps, VPN throughput (IMIX IPSec): 300 Mbps, VPN throughput (1400 B IPSec): 800 Mbps, Firewall throughput (1518-byte packet size): 5.5 Gbps, Firewall throughput (IMIX UDP): 1.7 Gbps, Firewall throughput (IMIX): 2.3 Gbps, IPS throughput (HTTP): 600 Mbps, Firewall throughput (64-byte packet size): 750 Kpps
Capacity
Capacity :GRE tunnels: 1024, Maximum number of remote users: 250, Security policies: 4000, VLANs supported: 3000, Concurrent sessions: 375000, IPv4 routing table entries: 1000000, AppID sessions: 64000, IPv6 routing table entries: 600000, Routers: 128, Concurrent IPSec sessions: 64000, Security zones: 64, URLF sessions: 64000, Maximum number of NAT rules: 2000, New connections per second: 15000, MAC addresses: 15000, IPSec VPN tunnels: 2048
Networking
Type :Security appliance
Form Factor :Rack-mountable
Ports Qty :16
Connectivity Technology :Wired
Data Link Protocol :HDLC, Ethernet, PPP, Gigabit Ethernet, Frame Relay, MLPPP, Fast Ethernet, MLFR
Routing Protocol :Static IP routing, RIP-1, MPLS, PIM-SM, IS-IS, RIP-2, OSPFv3, PIM-SSM, PIM-DM, BGP, IGMPv2, MSDP, OSPF, DVMRP, IGMP, ECMP, VRRP
Network / Transport Protocol :PPPoE, DNS, DDNS, RSVP, DHCP, IPSec
Remote Management Protocol :HTTP, Telnet, SSH, CLI, SNMP
Features :Rapid Spanning Tree Protocol (RSTP) support, Weighted Random Early Detection (WRED), J-Flow, Dead Peer Detection (DPD), VPN support, Generic Routing Encapsulation (GRE), NAT support, Intrusion Prevention System (IPS), Anti-virus protection, Virtual Private LAN Service (VPLS), IPv6 support, Inspect SSL Encrypted Traffic, Anti-spam protection, Quality of Service (QoS), LLDP support, PAT support, IPSec NAT-Traversal (NAT-T), DDos attack prevention, Label Distribution Protocol (LDP), URL filtering, DHCP server, MACsec support, Firewall protection, DiffServ Code Point (DSCP) support, DHCP client, DHCP relay, Spanning Tree Protocol (STP) support, IPv4 support
Compliant Standards :IEEE 802.1x, IEEE 802.1p
IP Telephony
VoIP Protocols :SDP
Expansion Slots
Expansion Slots :4 (total) / 4 (free) x expansion slot
Interface Provided
Interfaces :1 x management – RJ-45, 1 x USB 2.0 – Type A, 1 x mini-USB, 1 x console – RJ-45, 8 x 1000Base-T – RJ-45, 8 x 1000Base-X – SFP (mini-GBIC)
OS Provided
Type :JUNOS
Software
Type :Junos Software Enhanced
Power Device
Type :Internal power supply
Power Redundancy :Yes
Installed Qty :1
Max Supported Qty :2
Power Consumption Operational :122 watt
Miscellaneous
Color Category :Gray
Included Accessories :Rack mount kit
TAA Compliant :Yes
Height (Rack Units) :1
Encryption Algorithm :SHA-1, SSL, MD5, 256-bit SHA, Triple DES, PKI, IKE, DES, 256-bit AES, IKEv2
Authentication Method :X.509 certificates, Secure Shell (SSH)
MTBF :27.4 years
Compliant Standards :FCC Class A certified, RoHS2
Dimensions & Weight
Width :17.4 inch
Depth :14.6 inch
Height :1.7 inch
Weight :10.8 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :10 – 90% (non-condensing)
