Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks

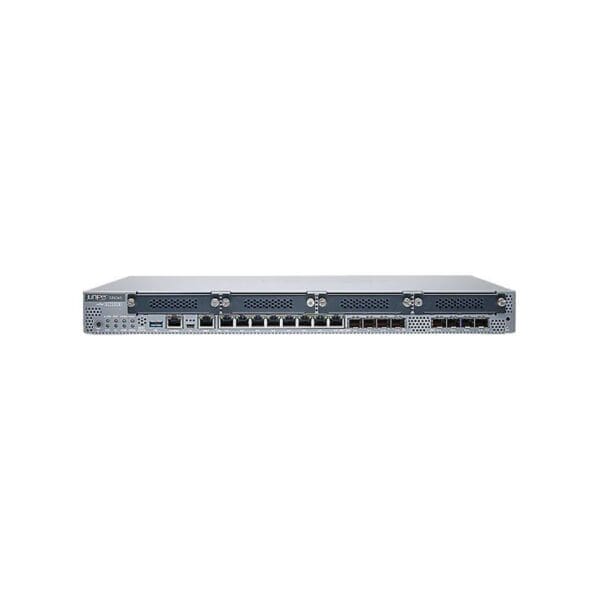

Model :SRX345 Services Gateway
Packaged Quantity :1
Chassis
Airflow Direction :Front to back airflow
RAM
Installed Size :4 GB
Flash Memory
Installed Size :8 GB, 8 GB
Hard Drive
Type :SSD
Performance
Performance :Firewall throughput (64-byte packet size): 700 Kpps, VPN throughput (1400-byte packet size): 800 Mbps, VPN throughput (IPSec): 300 Mbps, IPS throughput: 500 Mbps, Firewall throughput (1518-byte packet size): 5 Gbps, Connection rate: 20000 connections per second, Firewall throughput (IMIX): 2 Gbps
Capacity
Capacity :Virtual interfaces (VLANs): 3000, Concurrent sessions: 512000, Virtual routers: 128, MAC addresses: 15000, Maximum number of users: 200, Maximum number of NAT rules: 2000, Security zones: 64, IPSec VPN tunnels: 2048, IPv6 routing table entries: 1000000, Security policies: 4000, GRE tunnels: 1024, IPv4 routing table entries: 2000000
Networking
Type :Security appliance
Form Factor :Rack-mountable
Ports Qty :16
Connectivity Technology :Wired
Data Link Protocol :Fast Ethernet, Gigabit Ethernet, PPP, MLPPP, HDLC, Ethernet, Frame Relay, MLFR
Routing Protocol :OSPFv3, OSPF, Static IP routing, RIP-2, PIM-SSM, BGP, IGMPv2, IGMP, IS-IS, VRRP, MPLS, MSDP, PIM-DM, PIM-SM, DVMRP, RIP-1, ECMP
Network / Transport Protocol :RSVP, DHCP, IPSec, PPPoE, DDNS, DNS
Remote Management Protocol :HTTP, Telnet, SSH, SNMP, CLI
Features :DHCP server, DHCP client, Anti-spam protection, Label Distribution Protocol (LDP), DHCP relay, Virtual Private LAN Service (VPLS), Quality of Service (QoS), IPSec NAT-Traversal (NAT-T), Rapid Spanning Tree Protocol (RSTP) support, URL filtering, Generic Routing Encapsulation (GRE), DDos attack prevention, Intrusion Prevention System (IPS), MACsec support, IPv4 support, Front to back airflow, Spanning Tree Protocol (STP) support, DiffServ Code Point (DSCP) support, Firewall protection, IPv6 support, Inspect SSL Encrypted Traffic, Weighted Random Early Detection (WRED), Dead Peer Detection (DPD), LLDP support, J-Flow, VPN support, NAT support, Anti-virus protection, PAT support
Compliant Standards :IEEE 802.1x, IEEE 802.1p
IP Telephony
VoIP Protocols :SDP
Expansion Slots
Expansion Slots :4 (total) / 4 (free) x expansion slot
Interface Provided
Interfaces :1 x management – RJ-45, 1 x console – RJ-45, 8 x 1000Base-X – SFP (mini-GBIC), 8 x 1000Base-T – RJ-45, 1 x mini-USB, 1 x USB 2.0 – Type A
OS Provided
Type :JUNOS
Power Device
Type :Internal power supply
Power Redundancy :Yes
Installed Qty :2
Max Supported Qty :2
Power Consumption Operational :122 watt
Miscellaneous
Color Category :Gray
Included Accessories :Rack mount kit
Height (Rack Units) :1
Encryption Algorithm :DES, IKEv2, IKE, MD5, PKI, 256-bit SHA, Triple DES, SSL, 256-bit AES, SHA-1
Authentication Method :Secure Shell (SSH), X.509 certificates
MTBF :240,000 Hours
Compliant Standards :RoHS2, FCC Class A certified
Dimensions & Weight
Width :17.4 inch
Depth :14.6 inch
Height :1.7 inch
Weight :10.8 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :10 – 90% (non-condensing)
