Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks

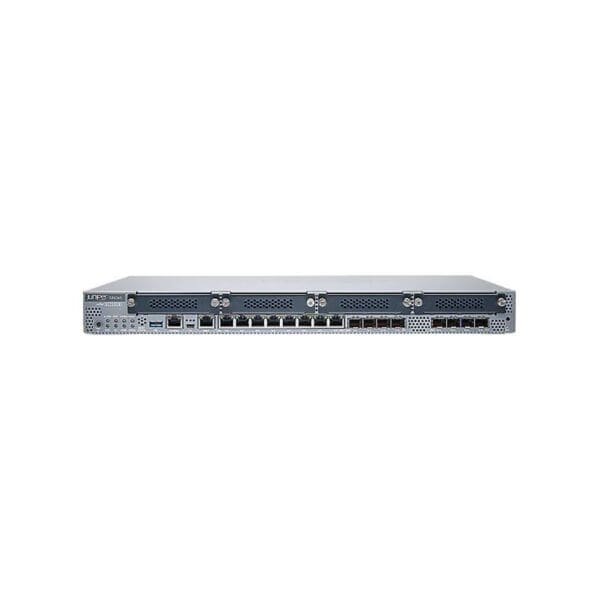

Model :SRX345 Services Gateway
Packaged Quantity :1
Chassis
Airflow Direction :Front to back airflow
RAM
Installed Size :4 GB
Flash Memory
Installed Size :8 GB, 8 GB
Hard Drive
Type :SSD
Performance
Performance :Connection rate: 20000 connections per second, Firewall throughput (64-byte packet size): 700 Kpps, VPN throughput (1400-byte packet size): 800 Mbps, Firewall throughput (IMIX): 2 Gbps, IPS throughput: 500 Mbps, Firewall throughput (1518-byte packet size): 5 Gbps, VPN throughput (IPSec): 300 Mbps
Capacity
Capacity :Concurrent sessions: 512000, Security policies: 4000, Virtual routers: 128, Maximum number of users: 200, IPSec VPN tunnels: 2048, Security zones: 64, Maximum number of NAT rules: 2000, Virtual interfaces (VLANs): 3000, IPv6 routing table entries: 1000000, IPv4 routing table entries: 2000000, MAC addresses: 15000, GRE tunnels: 1024
Networking
Type :Security appliance
Form Factor :Rack-mountable
Ports Qty :16
Connectivity Technology :Wired
Data Link Protocol :Ethernet, Frame Relay, Fast Ethernet, MLFR, HDLC, PPP, Gigabit Ethernet, MLPPP
Routing Protocol :PIM-SM, IGMPv2, BGP, IS-IS, RIP-1, PIM-DM, Static IP routing, VRRP, OSPF, MSDP, IGMP, RIP-2, PIM-SSM, ECMP, OSPFv3, MPLS, DVMRP
Network / Transport Protocol :DDNS, PPPoE, DNS, RSVP, IPSec, DHCP
Remote Management Protocol :SSH, HTTP, SNMP, Telnet, CLI
Features :Quality of Service (QoS), Generic Routing Encapsulation (GRE), IPSec NAT-Traversal (NAT-T), Firewall protection, IPv6 support, MACsec support, Anti-virus protection, NAT support, DDos attack prevention, DHCP client, Weighted Random Early Detection (WRED), Label Distribution Protocol (LDP), Dead Peer Detection (DPD), Spanning Tree Protocol (STP) support, Inspect SSL Encrypted Traffic, LLDP support, DHCP server, Anti-spam protection, PAT support, URL filtering, DiffServ Code Point (DSCP) support, DHCP relay, J-Flow, IPv4 support, Rapid Spanning Tree Protocol (RSTP) support, VPN support, Intrusion Prevention System (IPS), Virtual Private LAN Service (VPLS), Front to back airflow
Compliant Standards :IEEE 802.1p, IEEE 802.1x
IP Telephony
VoIP Protocols :SDP
Expansion Slots
Expansion Slots :4 (total) / 4 (free) x expansion slot
Interface Provided
Interfaces :8 x 1000Base-X – SFP (mini-GBIC), 1 x USB 2.0 – Type A, 1 x management – RJ-45, 1 x mini-USB, 1 x console – RJ-45, 8 x 1000Base-T – RJ-45
OS Provided
Type :JUNOS
Power Device
Type :Internal power supply
Power Consumption Operational :122 watt
Miscellaneous
Height (Rack Units) :1
Encryption Algorithm :256-bit SHA, SHA-1, PKI, IKE, SSL, 256-bit AES, Triple DES, DES, IKEv2, MD5
Authentication Method :X.509 certificates, Secure Shell (SSH)
Compliant Standards :RoHS2, FCC Class A certified
Dimensions & Weight
Width :17.4 inch
Depth :14.6 inch
Height :1.7 inch
Weight :10.8 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :10 – 90% (non-condensing)
