Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks

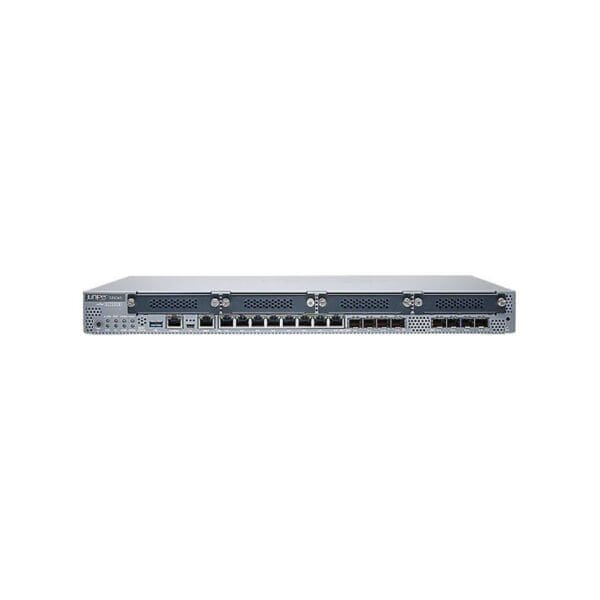

Model :SRX345 Services Gateway
Packaged Quantity :1
Chassis
Airflow Direction :Front to back airflow
RAM
Installed Size :4 GB
Flash Memory
Installed Size :8 GB
Modem
Protocols & Specifications :HDLC
Performance
Performance :VPN throughput (1400-byte packet size): 800 Mbps, VPN throughput (IMIX IPSec): 300 Mbps, Routing with packet mode (64-byte packet size): 750 Kpps, IPS throughput: 600 Mbps, Firewall throughput: 300 Mbps, Firewall throughput: 5 Gbps, VPN throughput (IPSec): 800 Mbps, Routing with packet mode (1518-byte packet size): 5500 Mbps, Firewall throughput (1518-byte packet size): 5000 Mbps, Firewall throughput (IMIX packet size): 1700 Mbps, Application visibility and control: 1700 Mbps, Firewall throughput (64-byte packet size): 550 Kpps, Routing with packet mode (IMIX packet size): 2300 Mbps
Capacity
Capacity :Virtual routers: 128, RIB entries: 1000000, Security zones: 64, FIB entries: 600000, AppID sessions: 64000, GRE tunnels: 1024, Security policies: 4000, Maximum number of remote users: 250, Virtual interfaces (VLANs): 3000, Concurrent sessions: 375000, Connections per second: 15000, IPS sessions: 64000, MAC addresses: 15000, Maximum number of NAT rules: 2000, URLF sessions: 64000, SSL VPN users: 250, IPSec VPN tunnels: 2048
Networking
Type :Security appliance
Form Factor :Rack-mountable
Ports Qty :16
Connectivity Technology :Wired
Data Link Protocol :Ethernet, Gigabit Ethernet, Fast Ethernet
Routing Protocol :PIM-DM, Two-Way Active Measurement Protocol (TWAMP), OSPFv3, Policy-based routing (PBR), OSPF, RIP-2, IGMP, IS-IS, PIM-SM, VRRP, Bidirectional Forwarding Detection (BFD), BGP, MSDP, ECMP, MPLS, DVMRP, RIP-1, IGMPv2, RSTP, STP, MSTP, PIM-SSM, GRE, Static IP routing, RSVP
Switching Protocol :Frame Relay
Network / Transport Protocol :IPv6, DNS, DHCP, PPPoE, IPv4, Telnet, DDNS, IPSec, RSVP
Remote Management Protocol :Telnet, SNMP, CLI, RSTP, SSH
Features :Multiple VLAN Registration Protocol (MVRP), Protocol Independent Multicast (PIM), High-Level Data Link Control (HDLC), Next-generation multicast VPN (NG-MVPN), Point-to-Point Protocol (PPP), DHCP relay, Label Distribution Protocol (LDP), Integrated Routing and Bridging (IRB), Real-time performance monitoring (RPM), DHCP client, NAT support, Quality of Service (QoS), Weighted Random Early Detection (WRED), Multilink Frame Relay (MLFR), 802.1x authentication, MAC address learning, Virtual Private LAN Service (VPLS), Translational cross-connect (TCC), Flow monitoring, VPN support, Firewall protection, SSL inspection, LACP support, LLDP support, VPN monitoring, DDoS Protection, PAT support, Multilink Point-to-Point Protocol (MLPPP), MACsec support, Circuit cross-connect (CCC), Connectivity Fault Management (CFM), DHCP server, LLDP-MED, DiffServ Code Point (DSCP) support, Dead Peer Detection (DPD)
Compliant Standards :IEEE 802.3ad (LACP), X.509, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.1p, IEEE 802.1x
IP Telephony
VoIP Protocols :SDP
Expansion Slots
Expansion Slots :4 (total) / 4 (free) x expansion slot
Interface Provided
Interfaces :8 x 1000Base-X – SFP (mini-GBIC), 8 x 1000Base-T – RJ-45, 1 x USB 3.0 – Type A, 1 x mini-USB, 1 x console – RJ-45, 1 x management – RJ-45
OS Provided
Type :JUNOS
Software
Type :Junos Software Base
Power Device
Type :Internal power supply
Power Redundancy :Optional
Max Supported Qty :2
Nominal Voltage :DC -40.8 -72 V
Power Consumption Operational :122 watt
Miscellaneous
Color Category :Gray
Included Accessories :Rack mount kit
Height (Rack Units) :1
Encryption Algorithm :Triple DES, 128-bit SHA, SHA-256, DES, PKI, MD5, FIPS 140-2 Level 2, IKEv2, SHA-384, HMAC, IKEv1, AES, SHA-1, ESP, SSL
Authentication Method :X.509 certificates
MTBF :27.4 years
Compliant Standards :RoHS2, FCC Class A certified
Dimensions & Weight
Width :17.4 inch
Depth :14.6 inch
Height :1.7 inch
Weight :10.8 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :10 – 90% (non-condensing)
