Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks

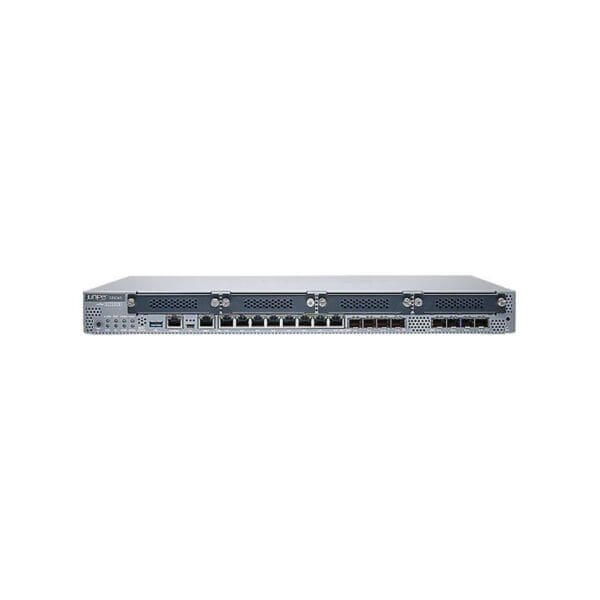

Model :SRX345 Services Gateway
Packaged Quantity :1
Chassis
Airflow Direction :Front to back airflow
RAM
Installed Size :4 GB
Flash Memory
Installed Size :8 GB, 8 GB
Hard Drive
Type :SSD
Performance
Performance :VPN throughput (1400-byte packet size): 800 Mbps, Connection rate: 20000 connections per second, IPS throughput: 500 Mbps, VPN throughput (IPSec): 300 Mbps, Firewall throughput (64-byte packet size): 700 Kpps, Firewall throughput (IMIX): 2 Gbps, Firewall throughput (1518-byte packet size): 5 Gbps
Capacity
Capacity :Maximum number of users: 200, Virtual interfaces (VLANs): 3000, MAC addresses: 15000, IPSec VPN tunnels: 2048, IPv4 routing table entries: 2000000, Concurrent sessions: 512000, Virtual routers: 128, Security policies: 4000, Maximum number of NAT rules: 2000, Security zones: 64, IPv6 routing table entries: 1000000, GRE tunnels: 1024
Networking
Type :Security appliance
Form Factor :Rack-mountable
Ports Qty :16
Connectivity Technology :Wired
Data Link Protocol :Gigabit Ethernet, Frame Relay, MLFR, Ethernet, HDLC, MLPPP, PPP, Fast Ethernet
Routing Protocol :IGMPv2, RIP-2, BGP, Static IP routing, MPLS, IS-IS, OSPFv3, IGMP, VRRP, DVMRP, PIM-DM, MSDP, RIP-1, PIM-SM, ECMP, OSPF, PIM-SSM
Network / Transport Protocol :RSVP, PPPoE, DDNS, DNS, IPSec, DHCP
Remote Management Protocol :SNMP, CLI, SSH, HTTP, Telnet
Features :DHCP server, VPN support, Quality of Service (QoS), MACsec support, PAT support, Intrusion Prevention System (IPS), IPv6 support, Rapid Spanning Tree Protocol (RSTP) support, Inspect SSL Encrypted Traffic, LLDP support, Anti-virus protection, NAT support, Firewall protection, IPSec NAT-Traversal (NAT-T), Virtual Private LAN Service (VPLS), DHCP relay, Generic Routing Encapsulation (GRE), Label Distribution Protocol (LDP), Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, DHCP client, DiffServ Code Point (DSCP) support, IPv4 support, Anti-spam protection, URL filtering, J-Flow, Dead Peer Detection (DPD), DDos attack prevention, Front to back airflow
Compliant Standards :IEEE 802.1x, IEEE 802.1p
IP Telephony
VoIP Protocols :SDP
Expansion Slots
Expansion Slots :4 (total) / 4 (free) x expansion slot
Interface Provided
Interfaces :1 x USB 2.0 – Type A, 1 x mini-USB, 8 x 1000Base-X – SFP (mini-GBIC), 8 x 1000Base-T – RJ-45, 1 x management – RJ-45, 1 x console – RJ-45
OS Provided
Type :JUNOS
Software
Type :Junos Software Enhanced
Power Device
Type :Internal power supply
Installed Qty :2
Max Supported Qty :2
Power Consumption Operational :122 watt
Miscellaneous
Color Category :Gray
Included Accessories :Rack mount kit
Height (Rack Units) :1
Encryption Algorithm :IKE, 256-bit SHA, SSL, PKI, IKEv2, 256-bit AES, SHA-1, DES, Triple DES, MD5
Authentication Method :Secure Shell (SSH), X.509 certificates
MTBF :240,000 Hours
Compliant Standards :RoHS2, FCC Class A certified
Dimensions & Weight
Width :17.4 inch
Depth :14.6 inch
Height :1.7 inch
Weight :10.8 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :10 – 90% (non-condensing)
