Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks

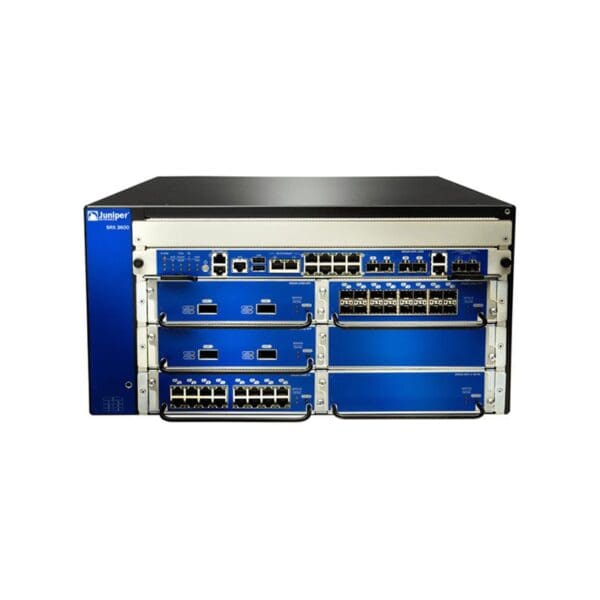

Model :SRX3600
Packaged Quantity :1
Optical Storage
Type :None
Capacity
Capacity :VPN tunnel interfaces: 5000, VPN tunnels: 10000
Networking
Type :Security appliance
Form Factor :External
Connectivity Technology :Wired
Data Link Protocol :Fast Ethernet, Gigabit Ethernet, Ethernet
Routing Protocol :OSPF, RIP-1, BGP, RIP-2
Remote Management Protocol :SNMP 3, SNMP 2, SSH, HTTP, HTTPS
Data Transfer Rate :1 GBps
Features :Quality of Service (QoS), Midplane, DDos attack prevention, Weighted Random Early Detection (WRED), IPSec passthrough, DHCP support
Expansion Slots
Expansion Slots :4 (total) / 4 (free) x, 6 (total) / 6 (free) x expansion slot
Interface Provided
Interfaces :1 x console, 2 x USB, 8 x 1000Base-T – RJ-45
Power Device
Type :Internal power supply
Installed Qty :4
Max Supported Qty :4
Nominal Voltage :DC -40 -72 V
Miscellaneous
Height (Rack Units) :5
Encryption Algorithm :PKI, RSA, DES, IKE, MD5, DH, AES, SHA-1
Authentication Method :RADIUS, Active Directory, LDAP
Dimensions & Weight
Width :17.5 inch
Depth :25.5 inch
Height :8.7 inch
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :5 – 90% (non-condensing)
