Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks

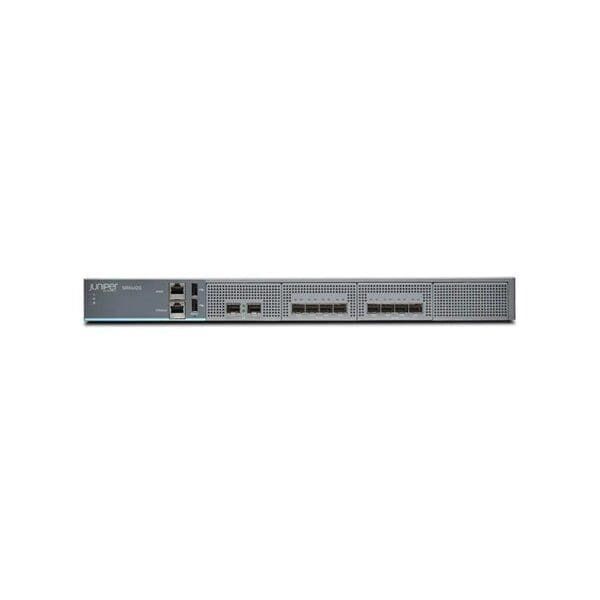

Model :SRX4100 Services Gateway
Packaged Quantity :1
Chassis
Airflow Direction :Front to back airflow
RAM
Installed Size :64 GB
Hard Drive
Type :SSD
Installed Qty :2
Capacity :240 GB
Performance
Performance :VPN throughput (IPSec): 5 Gbps, Connection rate: 175000 connections per second, Firewall throughput (IMIX): 20 Gbps, Firewall throughput (64-byte packet size): 5 Gbps, Application control (AVC) throughput: 18 Gbps, IPS throughput: 10 Gbps, Firewall throughput: 7 Gbps, IPSes throughput (1400-byte packet size): 10 Gbps, Firewall throughput (1518-byte packet size): 40 Gbps
Capacity
Capacity :Forwarding table entries: 2000000, Concurrent sessions: 5000000, Routing table entries: 2000000, Security policies: 60000
Networking
Type :Security appliance
Form Factor :Rack-mountable
Ports Qty :8
Connectivity Technology :Wired
Data Link Protocol :Fast Ethernet, 10 Gigabit Ethernet, Ethernet, Gigabit Ethernet
Routing Protocol :OSPFv3, OSPF, IGMPv2, Bidirectional PIM, Static IPv6 routing, Static IPv4 routing, IGMP, RIP-1, BGP, IS-IS, RIP-2
Network / Transport Protocol :IPSec, PPPoE, DHCP
Remote Management Protocol :SSH, Telnet, SNMP
Data Transfer Rate :10 GBps
Features :Anti-spam protection, Dynamic DNS server, Generic Routing Encapsulation (GRE), Virtual Private LAN Service (VPLS), Label Distribution Protocol (LDP), Quality of Service (QoS), DHCP client, IPSec Virtual Private Network (VPN), DNS proxy, DDos attack prevention, IPv6 support, Antivirus analysis, IGMP filtering, MPLS support, Weighted Random Early Detection (WRED), DHCP server, Dead Peer Detection (DPD), Source-Specific Multicast (SSM), J-Flow, Intrusion Prevention System (IPS), High Availability, VLAN support, Front to back airflow, DiffServ Code Point (DSCP) support, Multicast Source Discovery Protocol (MSDP), IPSec NAT-Traversal (NAT-T), VPN support, DHCP relay, NAT support, Firewall protection, Equal-Cost Multipath (ECMP), Virtual Route Redundancy Protocol (VRRP) support
Compliant Standards :IEEE 802.1p, X.509
Interface Provided
Interfaces :2 x USB 2.0 – Type A, 1 x console – RJ-45, 1 x 1000Base-T (management) – RJ-45, 8 x 10Gb Ethernet – SFP+, 2 x 10Gb Ethernet – SFP+
OS Provided
Type :JUNOS
Software
Type :Junos Software Base
Power Device
Type :Internal power supply
Hot-Plug :Hot-plug
Power Redundancy :Yes
Installed Qty :2
Power Provided :650 watt
Nominal Voltage :AC 120/230 V
Frequency Required :50/60 hertz
Power Consumption Operational :200 watt
Miscellaneous
Color Category :Gray
Height (Rack Units) :1
Encryption Algorithm :PKI, SHA-1, 256-bit SHA, 256-bit AES, IKE, 128-bit SHA, IKEv2, Triple DES
MTBF :12 years
Compliant Standards :FCC Class A certified, RoHS2
Dimensions & Weight
Width :17.5 inch
Depth :25 inch
Height :1.7 inch
Weight :28.99 lbs
Dimensions & Weight (Shipping)
Shipping Weight :47.49 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :5 – 90% (non-condensing)
