Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks

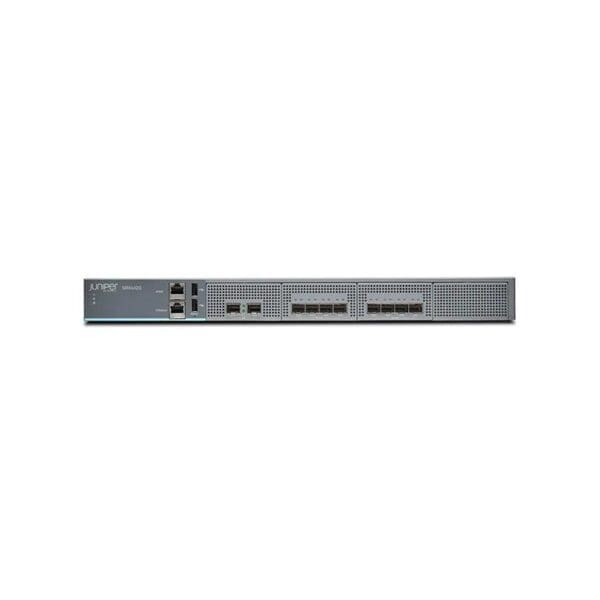

Model :SRX4100 Services Gateway
Packaged Quantity :1
Chassis
Airflow Direction :Front to back airflow
RAM
Installed Size :64 GB
Hard Drive
Type :SSD
Installed Qty :2
Capacity :240 GB
Performance
Performance :Firewall throughput: 7 Gbps, Connection rate: 175000 connections per second, IPSes throughput (1400-byte packet size): 10 Gbps, Application control (AVC) throughput: 18 Gbps, Firewall throughput (IMIX): 20 Gbps, IPS throughput: 10 Gbps, Firewall throughput (64-byte packet size): 5 Gbps, Firewall throughput (1518-byte packet size): 40 Gbps, VPN throughput (IPSec): 5 Gbps
Capacity
Capacity :Concurrent sessions: 5000000, Routing table entries: 2000000, Forwarding table entries: 2000000, Security policies: 60000
Networking
Type :Security appliance
Form Factor :Rack-mountable
Ports Qty :8
Connectivity Technology :Wired
Data Link Protocol :10 Gigabit Ethernet, Gigabit Ethernet, Fast Ethernet, Ethernet
Routing Protocol :OSPF, Static IPv4 routing, IGMP, IS-IS, BGP, Static IPv6 routing, IGMPv2, OSPFv3, Bidirectional PIM, RIP-1, RIP-2
Network / Transport Protocol :DHCP, PPPoE, IPSec
Remote Management Protocol :Telnet, SNMP, SSH
Data Transfer Rate :10 GBps
Features :Source-Specific Multicast (SSM), NAT support, IPSec NAT-Traversal (NAT-T), Generic Routing Encapsulation (GRE), VLAN support, Weighted Random Early Detection (WRED), DHCP relay, High Availability, DiffServ Code Point (DSCP) support, DHCP client, DHCP server, Firewall protection, MPLS support, IPSec Virtual Private Network (VPN), Quality of Service (QoS), Antivirus analysis, IGMP filtering, Multicast Source Discovery Protocol (MSDP), IPv6 support, J-Flow, Virtual Private LAN Service (VPLS), Intrusion Prevention System (IPS), Label Distribution Protocol (LDP), DDos attack prevention, Equal-Cost Multipath (ECMP), DNS proxy, Dynamic DNS server, Dead Peer Detection (DPD), Virtual Route Redundancy Protocol (VRRP) support, Anti-spam protection, VPN support
Compliant Standards :IEEE 802.1p, X.509
Interface Provided
Interfaces :1 x 1000Base-T (management) – RJ-45, 2 x 10Gb Ethernet – SFP+, 1 x console – RJ-45, 2 x USB 2.0 – Type A, 8 x 10Gb Ethernet – SFP+
OS Provided
Type :JUNOS
Software
Type :Junos Software Base
Power Device
Type :Internal power supply
Hot-Plug :Hot-plug
Power Redundancy :Yes
Installed Qty :2
Power Provided :650 watt
Nominal Voltage :DC -48 V
Power Consumption Operational :200 watt
Miscellaneous
Color Category :Gray
Height (Rack Units) :1
Encryption Algorithm :PKI, IKEv2, 128-bit SHA, 256-bit SHA, IKE, SHA-1, Triple DES, 256-bit AES
MTBF :12 years
Compliant Standards :RoHS2, FCC Class A certified
Dimensions & Weight
Width :17.5 inch
Depth :25 inch
Height :1.7 inch
Weight :28.99 lbs
Dimensions & Weight (Shipping)
Shipping Weight :47.49 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :5 – 90% (non-condensing)
