Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks

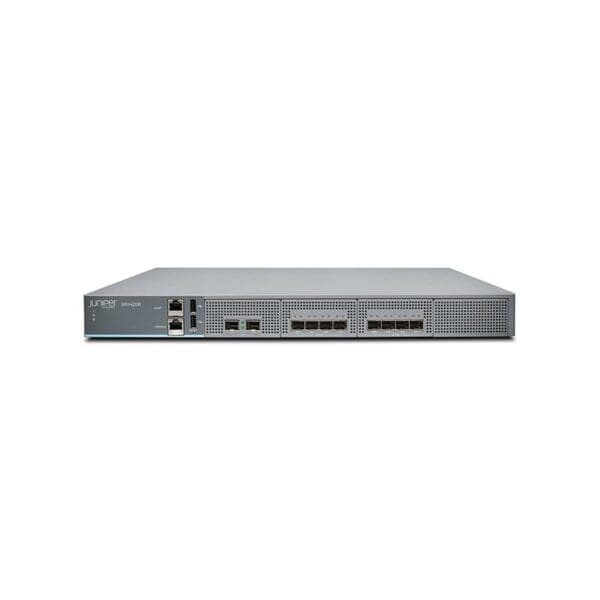

Model :SRX4200 Services Gateways
Packaged Quantity :1
Chassis
Airflow Direction :Front to back airflow
RAM
Installed Size :64 GB
Hard Drive
Type :SSD
Installed Qty :2
Capacity :240 GB
Performance
Performance :Firewall throughput: 15 Gbps, Connection rate: 350000 connections per second, Application control (AVC) throughput: 35 Gbps, Firewall throughput (IMIX): 40 Gbps, Firewall throughput (64-byte packet size): 10 Gbps, IPSes throughput (1400-byte packet size): 20 Gbps, IPS throughput (HTTP): 20 Gbps, VPN throughput (IPSec): 9.6 Gbps, Firewall throughput (1518-byte packet size): 80 Gbps
Capacity
Capacity :Forwarding table entries: 2000000, Concurrent sessions: 10000000, Security policies: 60000, Routing table entries: 2000000
Networking
Type :Security appliance
Form Factor :Rack-mountable
Ports Qty :8
Connectivity Technology :Wired
Data Link Protocol :Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet, Ethernet
Routing Protocol :RIP-1, Bidirectional PIM, IGMP, BGP, IS-IS, IGMPv2, RIP-2, OSPF, Static IPv4 routing, Static IPv6 routing, OSPFv3
Network / Transport Protocol :IPSec, PPPoE, DHCP
Remote Management Protocol :Telnet, SSH, SNMP
Data Transfer Rate :10 GBps
Features :DHCP relay, High Availability, DNS proxy, DHCP server, Virtual Route Redundancy Protocol (VRRP) support, Source-Specific Multicast (SSM), Generic Routing Encapsulation (GRE), VLAN support, IPv6 support, Dynamic DNS server, Label Distribution Protocol (LDP), VPN support, Quality of Service (QoS), Dead Peer Detection (DPD), J-Flow, Multicast Source Discovery Protocol (MSDP), Anti-spam protection, Equal-Cost Multipath (ECMP), Weighted Random Early Detection (WRED), DHCP client, NAT support, DiffServ Code Point (DSCP) support, Intrusion Prevention System (IPS), Firewall protection, DDos attack prevention, IPSec NAT-Traversal (NAT-T), IGMP filtering, Front to back airflow, Antivirus analysis, MPLS support, Virtual Private LAN Service (VPLS), IPSec Virtual Private Network (VPN)
Compliant Standards :IEEE 802.1p, X.509
Interface Provided
Interfaces :2 x USB 2.0 – Type A, 1 x 1000Base-T (management) – RJ-45, 8 x 10Gb Ethernet – SFP+, 1 x console – RJ-45, 2 x 10Gb Ethernet – SFP+
OS Provided
Type :JUNOS
Power Device
Type :Internal power supply
Hot-Plug :Hot-plug
Power Redundancy :Yes
Installed Qty :2
Power Provided :650 watt
Nominal Voltage :AC 120/230 V
Frequency Required :50/60 hertz
Power Consumption Operational :200 watt
Miscellaneous
Height (Rack Units) :1
Encryption Algorithm :IKEv2, SHA-1, Triple DES, PKI, 256-bit SHA, 256-bit AES, IKE, 128-bit SHA
MTBF :12 years
Compliant Standards :FCC Class A certified, RoHS2
Dimensions & Weight
Width :17.5 inch
Depth :25 inch
Height :1.7 inch
Weight :28.99 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :5 – 90% (non-condensing)
