Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks

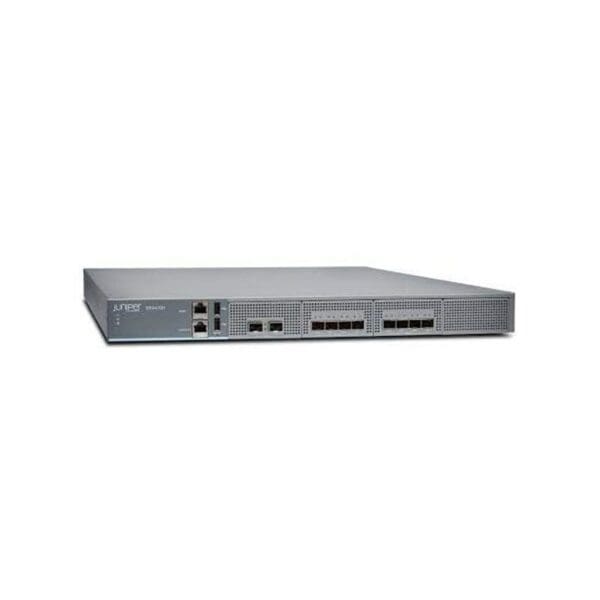

Model :SRX4200 Services Gateways
Packaged Quantity :1
Chassis
Airflow Direction :Front to back airflow
RAM
Installed Size :64 GB
Hard Drive
Type :SSD
Installed Qty :2
Capacity :240 GB
Performance
Performance :VPN throughput (IPSec): 9.6 Gbps, Firewall throughput (IMIX): 40 Gbps, Application control (AVC) throughput: 35 Gbps, IPSes throughput (1400-byte packet size): 20 Gbps, IPS throughput (HTTP): 20 Gbps, Firewall throughput (1518-byte packet size): 80 Gbps, Connection rate: 350000 connections per second, Firewall throughput (64-byte packet size): 10 Gbps, Firewall throughput: 15 Gbps
Capacity
Capacity :Forwarding table entries: 2000000, Routing table entries: 2000000, Concurrent sessions: 10000000, Security policies: 60000
Networking
Type :Security appliance
Form Factor :Rack-mountable
Ports Qty :8
Connectivity Technology :Wired
Data Link Protocol :10 Gigabit Ethernet, Fast Ethernet, Ethernet, Gigabit Ethernet
Routing Protocol :IGMP, Bidirectional PIM, Static IPv4 routing, OSPF, RIP-2, IS-IS, RIP-1, OSPFv3, BGP, Static IPv6 routing, IGMPv2
Network / Transport Protocol :IPSec, PPPoE, DHCP
Remote Management Protocol :Telnet, SNMP, SSH
Data Transfer Rate :10 GBps
Features :Intrusion Prevention System (IPS), IPSec Virtual Private Network (VPN), Equal-Cost Multipath (ECMP), Label Distribution Protocol (LDP), DDos attack prevention, Anti-spam protection, Quality of Service (QoS), DiffServ Code Point (DSCP) support, Source-Specific Multicast (SSM), DHCP server, IPv6 support, High Availability, DNS proxy, Multicast Source Discovery Protocol (MSDP), Generic Routing Encapsulation (GRE), MPLS support, Virtual Route Redundancy Protocol (VRRP) support, VPN support, Firewall protection, Front to back airflow, VLAN support, IPSec NAT-Traversal (NAT-T), Dynamic DNS server, Dead Peer Detection (DPD), J-Flow, Antivirus analysis, DHCP client, NAT support, Weighted Random Early Detection (WRED), IGMP filtering, DHCP relay, Virtual Private LAN Service (VPLS)
Compliant Standards :IEEE 802.1p, X.509
Interface Provided
Interfaces :2 x 10Gb Ethernet – SFP+, 1 x 1000Base-T (management) – RJ-45, 1 x console – RJ-45, 2 x USB 2.0 – Type A, 8 x 10Gb Ethernet – SFP+
OS Provided
Type :JUNOS
Software
Type :Junos Software Base
Power Device
Type :Internal power supply
Hot-Plug :Hot-plug
Power Redundancy :Yes
Installed Qty :2
Power Provided :650 watt
Nominal Voltage :AC 120/230 V
Frequency Required :50/60 hertz
Power Consumption Operational :200 watt
Miscellaneous
Color Category :Gray
Height (Rack Units) :1
Encryption Algorithm :SHA-1, 256-bit AES, IKE, Triple DES, PKI, 128-bit SHA, 256-bit SHA, IKEv2
MTBF :12 years
Compliant Standards :FCC Class A certified, RoHS2
Dimensions & Weight
Width :17.5 inch
Depth :25 inch
Height :1.7 inch
Weight :28.99 lbs
Dimensions & Weight (Shipping)
Shipping Weight :47.49 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :5 – 90% (non-condensing)
