Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks

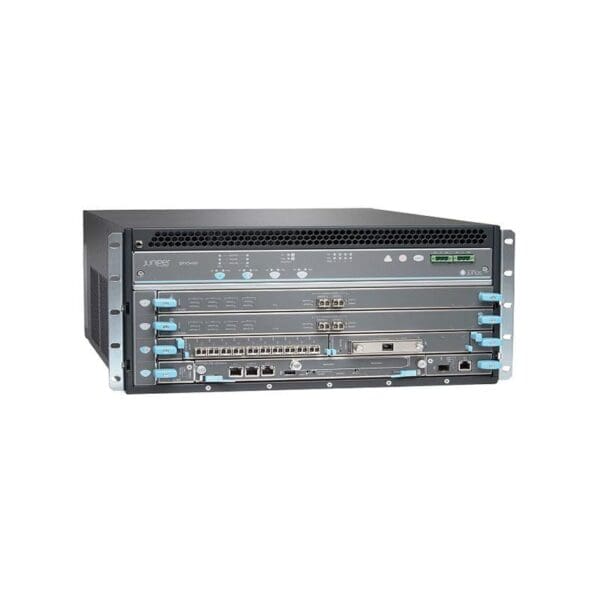

Model :SRX 5400
Bundled with :Juniper Networks SRX5KRE3-128G, SRX5K-SCB3, 2xHC PEM
Packaged Quantity :1
Chassis
Built-in Devices :Enhanced midplane, 128 GB SSD
Performance
Performance :Latency: 7 µs, VPN throughput (256-bit AES+SHA1 IPSec): 35 Gbps, Firewall throughput: 65 Gbps, Firewall throughput (large packets): 480 Gbps, IPS throughput: 22 Gbps, Firewall throughput (IMIX): 468 Gbps
Capacity
Capacity :Security zones: 2000, BGP peers: 2000, Virtual routers: 2000, Virtual interfaces (VLANs): 4096, RIP instances: 50, New sessions per second: 420000, OSPF routes: 1000000, Maximum number of users: unlimited, Concurrent sessions: 28000000, OSPF instances: 400, VPN tunnel interfaces: 15000, VPN tunnels (site-to-site): 15000, BGP routes: 1000000, Maximum logical network members: 32, BGP instances: 1000
Networking
Type :Security appliance
Form Factor :Rack-mountable
Connectivity Technology :Wired
Routing Protocol :ECMP, Static IP routing, BGP, IPv4-to-IPv6 Multicast, OSPF, RIPng, RIP-1, RIP-2, Policy-based routing (PBR), Bidirectional Forwarding Detection (BFD), OSPFv3
Network / Transport Protocol :DHCP
Remote Management Protocol :Telnet, HTTP, SSH, SNMP 3, SNMP 2, HTTPS, CLI
Features :Traffic shaping, Class of Service (CoS), Link Aggregation Control Protocol (LACP), DHCP relay, Intrusion Prevention System (IPS), DHCP server, Anti-malware protection, Firmware upgradable, High Availability, Quality of Service (QoS), IPv6 support, Traffic Control, PAT support, VPN support, Syslog support, NAT support, IPSec Virtual Private Network (VPN), DDos attack prevention, DoS attack prevention, DiffServ support, In-Service Software Upgrade (ISSU), Weighted Random Early Detection (WRED), Firewall protection, Weighted Round Robin (WRR) queuing, Anti-spyware protection, Fan tray
Expansion Slots
Expansion Slots :2 (total) / 2 (free) x expansion slot, 1 (total) / 0 (free) x Routing Engine (RE), 2 (total) / 1 (free) x Service Processing Card (SPC), 1 (total) / 1 (free) x Switch Control Board (SCB)
System Requirements
OS Required :JUNOS
Miscellaneous
Color Category :Gray
Encryption Algorithm :IKE, DES, Triple DES, DH, MD5, AES, SHA-1, PKI
Authentication Method :RADIUS
Compliant Standards :Common Criteria EAL4+, NEBS level 3, EMC
Dimensions & Weight
Width :17.4 inch
Depth :24.5 inch
Height :8.7 inch
Environmental Parameters
Min Operating Temperature :41 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :5 – 85% (non-condensing)
