Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks

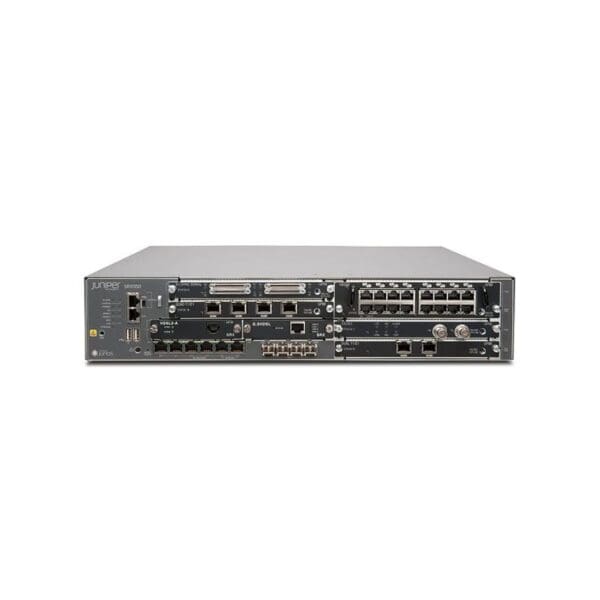

Model :SRX550 Services Gateway
Packaged Quantity :1
RAM
Installed Size :4 GB
Flash Memory
Installed Size :8 GB, 8 GB
Performance
Performance :Routing throughput: 1000000 packets per second, IPS throughput: 800 Mbps, Firewall throughput (large packets): 7 Gbps, Antivirus throughput: 300 Mbps, Firewall throughput (64-byte packet size): 700000 packets per second, VPN throughput (IPSec): 1 Gbps, Connection rate: 27000 connections per second, Firewall throughput (HTTP): 2 Gbps, Firewall throughput (IMIX): 2 Gbps
Capacity
Capacity :BGP routes: 712000, Maximum number of remote users: 500, Virtual interfaces (VLANs): 3967, BGP instances: 56, Concurrent sessions: 375000, RIP routes: 32000, Static routes: 100000, OSPF routes: 200000, MLFR maximum physical interfaces: 12, Maximum number of users: unlimited, RIP routes: 712000, MLPPP maximum physical interfaces: 12, Security policies: 8000, Concurrent VPN tunnels: 2000, VPN tunnel interfaces: 456, Virtual routers: 128, OSPF instances: 56, BGP peers: 192, RIP instances: 56, IPSec VPN tunnels: 2000, Security zones: 96
Networking
Type :Security appliance
Form Factor :Rack-mountable
Connectivity Technology :Wired
Data Link Protocol :Gigabit Ethernet, FRF.15, Ethernet, MLPPP, Fast Ethernet, HDLC, RS-232, Frame Relay, FRF.16, RS-449, V.35, PPP, FRF.12, MLFR, X.21
Routing Protocol :MPLS, IS-IS, IGMPv3, BGP, OSPF, IGMP, MLD, PIM-SM, ECMP, DVMRP, Static IP routing, RIP-2, PIM-SSM, PIM-DM, OSPFv3, RIP-1, GRE, VRRP, MSDP, IGMPv2, RIPng
Switching Protocol :Frame Relay, Ethernet
