Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks

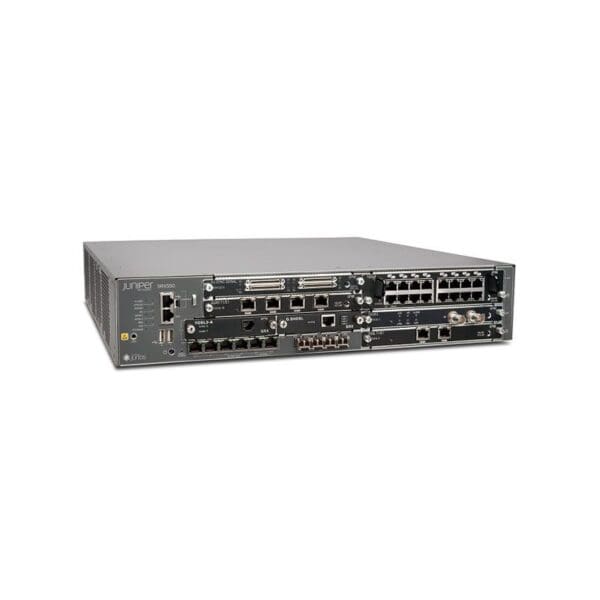

Model :SRX550 Services Gateway
Packaged Quantity :1
RAM
Installed Size :2 GB
Flash Memory
Installed Size :2 GB, 2 GB
Optical Storage
Type :None
Performance
Performance :Connection rate: 27000 connections per second, Firewall throughput (IMIX): 1.7 Gbps, Firewall throughput (large packets): 5.5 Gbps, IPS throughput: 800 Mbps, Routing throughput: 1000000 packets per second, VPN throughput (IPSec): 1 Gbps, Antivirus throughput: 300 Mbps, Firewall throughput (HTTP): 1.5 Gbps, Firewall throughput (64-byte packet size): 700000 packets per second
Capacity
Capacity :Maximum number of remote users: 500, BGP routes: 712000, VPN tunnel interfaces: 456, Maximum number of access points: 4, Maximum number of users: unlimited, BGP instances: 56, Virtual interfaces (VLANs): 3967, Security policies: 7256, MLPPP maximum physical interfaces: 12, Concurrent VPN tunnels: 2000, Static routes: 712000, Concurrent sessions: 375000, Security zones: 96, RIP routes: 712000, IPSec VPN tunnels: 2000, RIP instances: 56, BGP peers: 192, Virtual routers: 128, MLFR maximum physical interfaces: 12
Networking
Type :Security appliance
Form Factor :Rack-mountable
Connectivity Technology :Wired
Data Link Protocol :FRF.16, FRF.15, Ethernet, PPP, RS-449, MLPPP, V.35, FRF.12, HDLC, RS-232, Gigabit Ethernet, X.21, Frame Relay, Fast Ethernet, MLFR
Routing Protocol :IGMPv2, PIM-DM, RIP-2, Static IP routing, VRRP, MPLS, IGMP, GRE, MSDP, IGMPv3, RIPng, BGP, IS-IS, MLD, PIM-SM, ECMP, PIM-SSM, DVMRP, OSPF, RIP-1, OSPFv3
Switching Protocol :Frame Relay, Ethernet
Network / Transport Protocol :PPPoE, IPSec, RSVP, DHCP, PPPoA
Features :DiffServ support, IGMP snooping, DHCP server, PAT support, Weighted Random Early Detection (WRED), Modular design, J-Flow, LLDP support, Multiple Spanning Tree Protocol (MSTP) support, Syslog support, NAT support, DDos attack prevention, 3G/4G USB Dongle Support, DHCP relay, DiffServ Code Point (DSCP) support, Link Fragmentation and Interleaving (LFI), DoS attack prevention, Quality of Service (QoS), Tagged VLAN, IPv4 support, VPN support, Rapid Spanning Tree Protocol (RSTP) support, Firewall protection, IPv6 support, Content filtering
Compliant Standards :IEEE 802.1x, IEEE 802.1p, IEEE 802.1ad, IEEE 802.1D, IEEE 802.3ad (LACP), IEEE 802.1Q
Expansion Slots
Expansion Slots :8 (total) / 8 (free) x expansion slot
Interface Provided
Interfaces :2 x USB – Type A, 4 x 1000Base-X – SFP (mini-GBIC), 6 x 1000Base-T – RJ-45
OS Provided
Type :JUNOS
Power Device
Type :Internal power supply
Hot-Plug :Hot-plug
Power Redundancy :Optional
Installed Qty :1
Max Supported Qty :2
Power Provided :645 watt
Nominal Voltage :DC 43 – 56 V
Power Consumption Operational :85 watt
Miscellaneous
TAA Compliant :Yes
Height (Rack Units) :2
Encryption Algorithm :256-bit SHA, Triple DES, MD5, SHA-1, RSA, IKEv2, DH, PKI, IKE, 256-bit SHA-2, 256-bit AES, DES, 128-bit AES
Authentication Method :RADIUS, X.509 certificates, SecurID, LDAP, XAUTH (RADIUS, LDAP, Active Directory)
MTBF :9.6 years
Compliant Standards :CS-03, DOC, CSA C22.2 No. 60950-1, EN 300386, ICSA Firewall certified, VCCI Class A, EN 60950-1, CB, ICES Class A, JITC, FCC Class A certified, EN55022 Class A, AS/NZS 60950-1, UL 60950-1, CISPR 22 Class A, ICSA IPSec certified
Dimensions & Weight
Width :17.5 inch
Depth :18.2 inch
Height :3.5 inch
Weight :21.96 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :10 – 90% (non-condensing)
