Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks

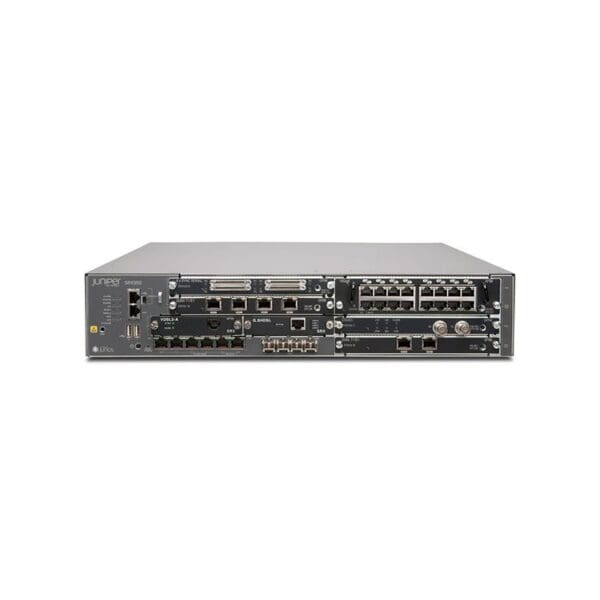

Model :SRX550 Services Gateway
Packaged Quantity :1
RAM
Installed Size :4 GB
Flash Memory
Installed Size :8 GB, 8 GB
Performance
Performance :Connection rate: 27000 connections per second, Firewall throughput (large packets): 7 Gbps, Firewall throughput (IMIX): 2 Gbps, Antivirus throughput: 300 Mbps, Firewall throughput (HTTP): 2 Gbps, Routing throughput: 1000000 packets per second, Firewall throughput (64-byte packet size): 700000 packets per second, VPN throughput (IPSec): 1 Gbps, IPS throughput: 800 Mbps
Capacity
Capacity :Static routes: 100000, MLPPP maximum physical interfaces: 12, Virtual routers: 128, BGP peers: 192, OSPF routes: 200000, MLFR maximum physical interfaces: 12, Security policies: 8000, RIP routes: 32000, RIP routes: 712000, Virtual interfaces (VLANs): 3967, Concurrent VPN tunnels: 2000, Maximum number of remote users: 500, Security zones: 96, Concurrent sessions: 375000, RIP instances: 56, VPN tunnel interfaces: 456, OSPF instances: 56, BGP instances: 56, IPSec VPN tunnels: 2000, BGP routes: 712000, Maximum number of users: unlimited
Networking
Type :Security appliance
Form Factor :Rack-mountable
Connectivity Technology :Wired
Data Link Protocol :MLFR, PPP, FRF.15, RS-232, V.35, Ethernet, Frame Relay, Gigabit Ethernet, RS-449, MLPPP, FRF.12, FRF.16, Fast Ethernet, X.21, HDLC
Routing Protocol :IGMPv2, RIPng, PIM-SM, DVMRP, Static IP routing, IS-IS, MPLS, ECMP, BGP, RIP-2, OSPF, OSPFv3, MLD, IGMP, RIP-1, PIM-DM, MSDP, IGMPv3, GRE, PIM-SSM, VRRP
Switching Protocol :Ethernet, Frame Relay
Network / Transport Protocol :DHCP, RSVP, PPPoA, IPSec, PPPoE
Features :Multiple Spanning Tree Protocol (MSTP) support, DiffServ Code Point (DSCP) support, Content filtering, Tagged VLAN, NAT support, DHCP server, DoS attack prevention, Syslog support, J-Flow, IPv4 support, Firewall protection, Link Fragmentation and Interleaving (LFI), IGMP snooping, DiffServ support, DHCP relay, Weighted Random Early Detection (WRED), 3G/4G USB Dongle Support, IPv6 support, Modular design, VPN support, PAT support, LLDP support, Rapid Spanning Tree Protocol (RSTP) support, Quality of Service (QoS), DDos attack prevention
Compliant Standards :IEEE 802.1x, IEEE 802.1ad, IEEE 802.3ad (LACP), IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p
Expansion Slots
Expansion Slots :8 (total) / 8 (free) x expansion slot
Interface Provided
Interfaces :6 x 1000Base-T – RJ-45, 2 x USB – Type A, 4 x 1000Base-X – SFP (mini-GBIC)
OS Provided
Type :JUNOS
Software
Type :Junos Software Enhanced
Power Device
Type :Internal power supply
Hot-Plug :Hot-plug
Power Redundancy :Optional
Installed Qty :1
Max Supported Qty :2
Power Provided :645 watt
Nominal Voltage :AC 120/230 V
Frequency Required :50/60 hertz
Power Consumption Operational :85 watt
Miscellaneous
Color Category :Gray
Included Accessories :Rack mount kit
Height (Rack Units) :2
Encryption Algorithm :256-bit SHA-2, 128-bit AES, 256-bit AES, IKE, 256-bit SHA, MD5, RSA, DES, SHA-1, DH, PKI, Triple DES, IKEv2
Authentication Method :RADIUS, X.509 certificates, LDAP, XAUTH (RADIUS, LDAP, Active Directory), SecurID
MTBF :9.6 years
Compliant Standards :EN 300386, UL 60950-1, FCC Class A certified, DOC, EN 60950-1, CS-03, ICES Class A, AS/NZS 60950-1, CSA C22.2 No. 60950-1, VCCI Class A, CB, CISPR 22 Class A, ICSA IPSec certified, ICSA Firewall certified, JITC, EN55022 Class A
Dimensions & Weight
Width :17.5 inch
Depth :18.2 inch
Height :3.5 inch
Weight :21.96 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :10 – 90% (non-condensing)
