Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks

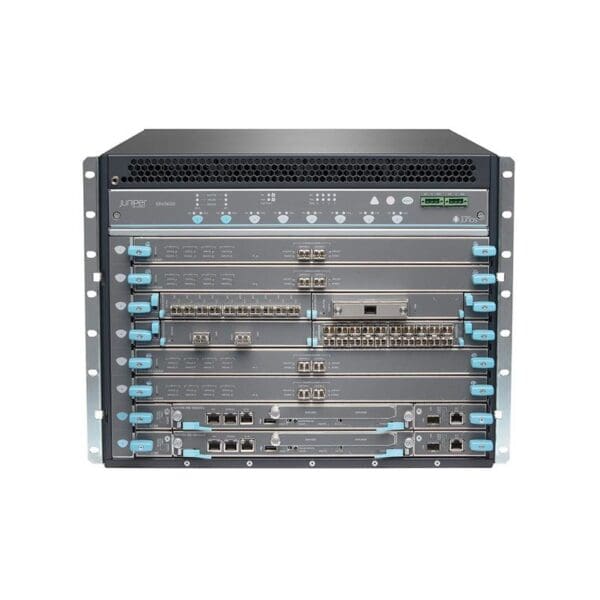

Model :SRX 5600
Packaged Quantity :1
Chassis
Built-in Devices :Midplane
Processor
Installed Qty :1
Clock Speed :1.3 GHZ
RAM
Installed Size :2 GB
Performance
Performance :VPN throughput (256-bit AES+SHA1 IPSec): 75 Gbps, Firewall throughput (IMIX): 65 Gbps, IPS throughput: 50 Gbps, Firewall throughput: 100 Gbps, 3DES+SHA1 VPN performance (large packets): 75 Gbps, Firewall throughput (64-byte packet size): 20 Mpps
Capacity
Capacity :BGP peers: 2000, Concurrent users: unlimited, Virtual interfaces (VLANs): 4096, RIP instances: 50, Security policies: 80000, BGP instances: 1000, Security zones: 2000, Concurrent sessions: 60000000, Virtual routers: 2000, VPN tunnel interfaces: 15000, New sessions per second: 400000, BGP routes: 1000000, OSPF routes: 1000000, OSPF instances: 400, Maximum logical network members: 32, VPN tunnels (site-to-site): 15000
Networking
Type :Security appliance
Form Factor :Rack-mountable
Connectivity Technology :Wired
Routing Protocol :OSPFv3, RIP-2, IPv4-to-IPv6 Multicast, BGP, RIP-1, Policy-based routing (PBR), ECMP, Static IP routing, Bidirectional Forwarding Detection (BFD), OSPF, RIPng
Network / Transport Protocol :DHCP
Remote Management Protocol :HTTPS, CLI, Telnet, SSH, HTTP, SNMP 2
Features :Weighted Random Early Detection (WRED), VPN support, Firmware upgradable, IPv6 support, DHCP relay, Syslog support, Anti-spyware protection, High Availability, PAT support, Link Aggregation Control Protocol (LACP), Anti-malware protection, Firewall protection, NAT support, Weighted Round Robin (WRR) queuing, DiffServ support, DHCP server, Traffic shaping, Class of Service (CoS), Quality of Service (QoS), Traffic Control, IPSec Virtual Private Network (VPN), DDos attack prevention, Intrusion Prevention System (IPS), DoS attack prevention
Expansion Slots
Expansion Slots :5 (total) / 3 (free) x, 5 (total) / 5 (free) x expansion slot
Power Device
Type :Internal power supply
Installed Qty :2
Nominal Voltage :AC 120/230 V
System Requirements
OS Required :JUNOS
Miscellaneous
Encryption Algorithm :DH, Triple DES, PKI, SHA-1, DES, AES, IKE, MD5
Authentication Method :RADIUS
Compliant Standards :NEBS level 3, EMC
Dimensions & Weight
Width :17.5 inch
Depth :23.8 inch
Height :14 inch
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :5 – 90%
