Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks

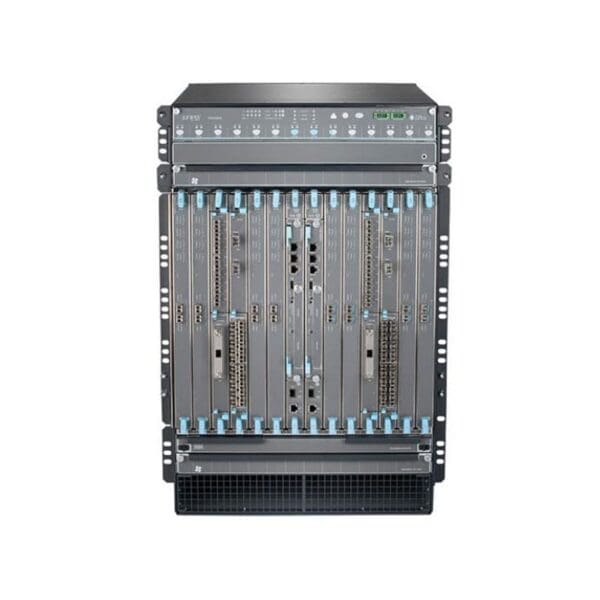

Model :SRX 5800
Bundled with :Juniper Networks SRX5K-RE-1800X4, SRX5K-SCB3
Packaged Quantity :1
Chassis
Built-in Devices :128 GB SSD, Enhanced midplane
Processor
Type :Xeon
Installed Qty :1
Clock Speed :1.8 GHZ
RAM
Installed Size :16 GB
Performance
Performance :Latency: 7 µs, Firewall throughput: 320 Gbps, Firewall throughput (IMIX): 2 Tbps, VPN throughput (256-bit AES+SHA1 IPSec): 200 Gbps, IPS throughput: 100 Gbps, Firewall throughput (large packets): 2 Tbps
Capacity
Capacity :Security zones: 2000, BGP peers: 2000, Virtual interfaces (VLANs): 4096, BGP routes: 1000000, OSPF routes: 1000000, New sessions per second: 420000, BGP instances: 1000, Concurrent sessions: 100000000, Virtual routers: 2000, Maximum number of users: unlimited, OSPF instances: 400, Maximum logical network members: 32, VPN tunnels (site-to-site): 15000, VPN tunnel interfaces: 15000, RIP instances: 50
Networking
Type :Security appliance
Form Factor :Rack-mountable
Connectivity Technology :Wired
Routing Protocol :ECMP, IPv4-to-IPv6 Multicast, Static IP routing, RIPng, BGP, Bidirectional Forwarding Detection (BFD), OSPF, OSPFv3, RIP-1, RIP-2, Policy-based routing (PBR)
Network / Transport Protocol :DHCP, IPSec
Remote Management Protocol :SNMP 3, CLI, SNMP 2, Telnet, HTTP, HTTPS, SSH
Features :DoS attack prevention, Fan tray, Traffic Control, IPv6 support, Class of Service (CoS), DHCP relay, NAT support, DHCP server, Link Aggregation Control Protocol (LACP), VPN support, Weighted Random Early Detection (WRED), PAT support, Quality of Service (QoS), Firewall protection, DiffServ support, Anti-spyware protection, Firmware upgradable, High Availability, Syslog support, IPSec Virtual Private Network (VPN), Weighted Round Robin (WRR) queuing, Intrusion Prevention System (IPS), Traffic shaping, Anti-malware protection, DDos attack prevention, In-Service Software Upgrade (ISSU)
Expansion Slots
Expansion Slots :2 (total) / 2 (free) x Service Processing Card (SPC), 2 (total) / 1 (free) x Routing Engine (RE), 10 (total) / 10 (free) x expansion slot, 2 (total) / 0 (free) x Switch Control Board (SCB)
Power Device
Type :Internal power supply
Hot-Plug :Hot-plug
Power Redundancy :Optional
Installed Qty :2
Max Supported Qty :4
Power Provided :8200 watt
Nominal Voltage :AC 230 V
System Requirements
OS Required :JUNOS
Miscellaneous
Height (Rack Units) :48
Encryption Algorithm :IKE, Triple DES, AES, DES, PKI, SHA-1, DH, MD5
Authentication Method :X.509 certificates, RADIUS
Compliant Standards :EMC, NEBS level 3
Dimensions & Weight
Width :17.5 inch
Depth :23.5 inch
Height :27.8 inch
Environmental Parameters
Min Operating Temperature :41 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :5 – 85% (non-condensing)
