Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks

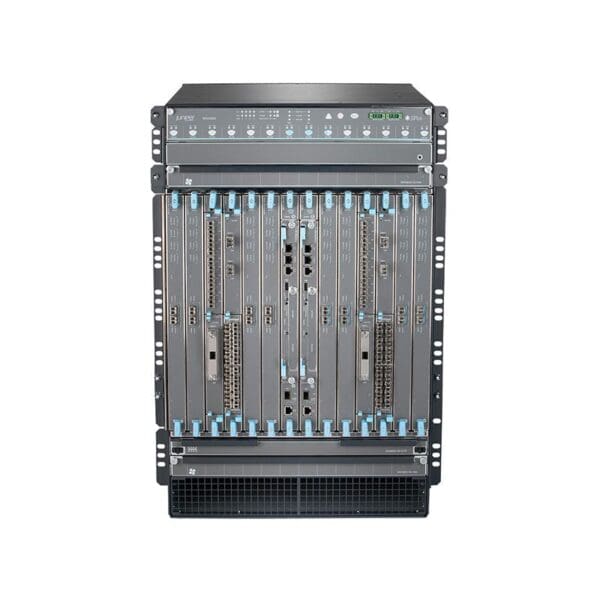

Model :SRX 5800
Bundled with :Juniper Networks SRX5KRE3-128G, 2x SRX5K-SCB4, 2x HC PEM
Packaged Quantity :1
Chassis
Built-in Devices :Enhanced midplane, 128 GB SSD
Processor
Type :Xeon
Installed Qty :1
Manufacturer :Intel
Clock Speed :1.8 GHZ
RAM
Installed Size :16 GB
Performance
Performance :Latency: 7 µs, IPS throughput: 100 Gbps, Firewall throughput (large packets): 2 Tbps, Firewall throughput (IMIX): 2 Tbps, Firewall throughput: 320 Gbps, VPN throughput (256-bit AES+SHA1 IPSec): 200 Gbps
Capacity
Capacity :Virtual interfaces (VLANs): 4096, Security zones: 2000, Maximum number of users: unlimited, OSPF routes: 1000000, RIP instances: 50, Maximum logical network members: 32, VPN tunnels (site-to-site): 15000, BGP routes: 1000000, VPN tunnel interfaces: 15000, New sessions per second: 420000, Virtual routers: 2000, BGP instances: 1000, Concurrent sessions: 100000000, OSPF instances: 400, BGP peers: 2000
Networking
Type :Security appliance
Form Factor :Rack-mountable
Connectivity Technology :Wired
Routing Protocol :Bidirectional Forwarding Detection (BFD), OSPFv3, Policy-based routing (PBR), IPv4-to-IPv6 Multicast, Static IP routing, BGP, OSPF, RIPng, RIP-2, ECMP, RIP-1
Network / Transport Protocol :IPSec, DHCP
Remote Management Protocol :SNMP 2, Telnet, HTTPS, HTTP, CLI, SSH, SNMP 3
Features :NAT support, In-Service Software Upgrade (ISSU), Link Aggregation Control Protocol (LACP), Anti-malware protection, VPN support, Firmware upgradable, Weighted Random Early Detection (WRED), IPSec Virtual Private Network (VPN), DoS attack prevention, IPv6 support, DDos attack prevention, Quality of Service (QoS), Weighted Round Robin (WRR) queuing, 2 fan trays, Class of Service (CoS), DHCP relay, DHCP server, Traffic Control, Syslog support, Traffic shaping, Intrusion Prevention System (IPS), DiffServ support, Anti-spyware protection, Firewall protection, PAT support, High Availability
Expansion Slots
Expansion Slots :11 (total) / 11 (free) x expansion slot, 8 (total) / 8 (free) x Service Processing Card (SPC), 2 (total) / 1 (free) x Routing Engine (RE), 2 (total) / 0 (free) x Switch Control Board (SCB)
System Requirements
OS Required :JUNOS
Miscellaneous
Color Category :Gray
Encryption Algorithm :Triple DES, PKI, DH, IKE, MD5, AES, SHA-1, DES
Authentication Method :RADIUS, X.509 certificates
Compliant Standards :NEBS level 3, EMC
Dimensions & Weight
Width :17.5 inch
Depth :23.5 inch
Height :27.8 inch
Environmental Parameters
Min Operating Temperature :41 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :5 – 85% (non-condensing)
