Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks

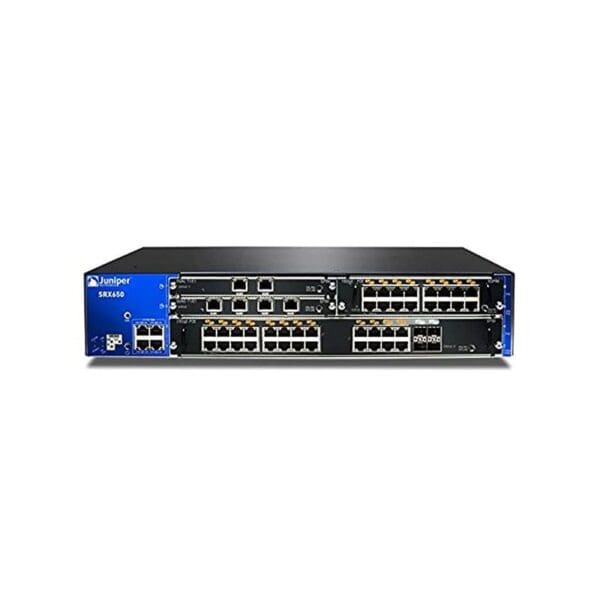

Model :SRX650 Services Gateway
Packaged Quantity :1
RAM
Installed Size :2 GB
Flash Memory
Installed Size :2 GB, 2 GB
Optical Storage
Type :None
Card Reader
Supported Flash Memory Cards :CompactFlash Card
Performance
Performance :Firewall throughput (IMIX): 2.5 Gbps, IPS throughput: 1 Gbps, Firewall throughput (large packets): 7 Gbps, Firewall throughput (HTTP): 2 Gbps, Antivirus throughput: 350 Mbps, Firewall throughput (64-byte packet size): 850000 packets per second, VPN throughput (IPSec): 1.5 Gbps
Capacity
Capacity :BGP peers: 256, Security policies: 8192, MLFR maximum physical interfaces: 12, Virtual interfaces (VLANs): 3967, Concurrent sessions: 512000, RIP routes: 800000, VPN tunnel interfaces: 512, RIP instances: 64, Static routes: 800000, MLPPP maximum physical interfaces: 12, Maximum number of remote users: 500, Security zones: 128, OSPF instances: 64, BGP instances: 64, OSPF routes: 800000, BGP routes: 800000, Concurrent VPN tunnels: 3000, Virtual routers: 60, IPSec VPN tunnels: 3000
Networking
Type :Security appliance
Form Factor :External
Ports Qty :4
Connectivity Technology :Wired
Data Link Protocol :Ethernet, Fast Ethernet, Gigabit Ethernet
Routing Protocol :IS-IS, MPLS, IGMPv3, PIM-DM, DVMRP, IGMP, RIP-2, ECMP, PIM-SSM, OSPF, MLD, PIM-SM, OSPFv3, IGMPv2, RIPng, BGP, RIP-1, MSDP
Switching Protocol :Frame Relay, Ethernet
Network / Transport Protocol :SMTP, POP3, RSVP, FTP, DHCP, IPSec, PPPoE, IMAP, PPPoA
Remote Management Protocol :SSH, HTTP
Power Over Ethernet (PoE) :PoE+
Features :IPv4 support, Multiple Spanning Tree Protocol (MSTP) support, DDos attack prevention, Syslog support, Anti-spyware protection, DiffServ support, Quality of Service (QoS), DHCP server, PAT support, Stateful Failover, Weighted Random Early Detection (WRED), Anti-spam protection, IGMP snooping, Firewall protection, Anti-malware protection, GRE tunneling, DoS attack prevention, J-Flow, Rapid Spanning Tree Protocol (RSTP) support, DHCP relay, Content filtering, Static routing, Power over Ethernet (PoE), NAT support, VLAN support, Link Fragmentation and Interleaving (LFI), Clustering technology, IPv6 support, LLDP support, IPSec NAT-Traversal (NAT-T), RADIUS support, Firmware upgradable, Virtual Route Redundancy Protocol (VRRP) support, Intrusion Prevention System (IPS)
Compliant Standards :IEEE 802.1x, IEEE 802.3af, IEEE 802.1Q, IEEE 802.3at, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1D, IEEE 802.1ad
Expansion Slots
Expansion Slots :2 (total) / 1 (free) x Services and Routing Engine (SRE), 8 (total) / 8 (free) x Gigabit-Backplane Physical Interface Module (GPIM)
Interface Provided
Interfaces :2 x USB – Type A, 4 x 1000Base-T – RJ-45
Power Device
Type :Internal power supply
Power Redundancy :Optional
Installed Qty :1
Max Supported Qty :2
Power Provided :645 watt
Nominal Voltage :AC 120/230 V
Frequency Required :50/60 hertz
Power Consumption Operational :122 watt
Miscellaneous
TAA Compliant :Yes
Height (Rack Units) :2
Encryption Algorithm :PKI, MD5, AES, DES, IKE, Triple DES, DH, RSA, SHA-1, 256-bit SHA
Authentication Method :XAUTH authentication, X.509 certificates, LDAP, SecurID, RADIUS
Compliant Standards :CB, FCC Class A certified, AS/NZS 60950-1, DOC, EN55022 Class A, UL 60950-1, EN300-386, CISPR 22 Class A, VCCI Class A ITE, ICES Class A, EN 60950-1, NEBS, CS-03, EN 300 386
Dimensions & Weight
Width :17.5 inch
Depth :18.2 inch
Height :3.5 inch
Weight :24.91 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :10 – 90% (non-condensing)
