Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks Secure Services Gateway

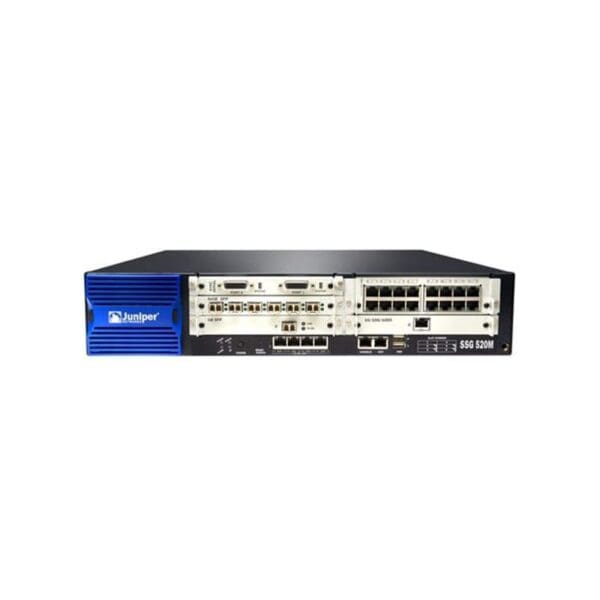

Model :SSG 520M
Packaged Quantity :1
Chassis
Built-in Devices :LED panel
RAM
Installed Size :1 GB
Optical Storage
Type :None
Performance
Performance :Firewall throughput (large packets): 650+ Mbps, 3DES throughput: 300 Mbps, Firewall throughput (IMIX): 600 Mbps
Capacity
Capacity :Security zones: 60, VPN tunnel interfaces: 100, Concurrent VPN tunnels: 500, Authenticated users (internal database): 1500, Connection / user qty: unlimited, Concurrent sessions: 64000, Security policies: 1000, Static routes: 20000
Networking
Type :Security appliance
Form Factor :External
Connectivity Technology :Wired
Data Link Protocol :Ethernet, PPP, HDLC, Gigabit Ethernet, Frame Relay, Fast Ethernet, MLPPP, FRF.15, FRF.16
Routing Protocol :IGMP, PIM-SM, RIP-1, BGP, RIP-2, PIM-SSM, OSPF, IGMPv2, Static IP routing
Network / Transport Protocol :L2TP, NetBEUI/NetBIOS, PPPoE, IPSec
Remote Management Protocol :HTTP, SNMP, HTTPS, SNMP 2, Telnet
Status Indicators :Receive, Status, Port status, Power, Transmit, Alarm, Link/activity
Features :PAT support, DHCP support, DoS attack prevention, NAT support, DDos attack prevention, 56-bit encryption, High Availability, Routing, LDAP support, Firmware upgradable, Transparency, Firewall protection, VPN support, Syslog support, Modular design, 168-bit encryption, URL filtering, DiffServ support, Quality of Service (QoS), VLAN support
Compliant Standards :IEEE 802.1x, X.509
IP Telephony
VoIP :Yes
VoIP Protocols :SCCP, H.323, SIP, MGCP
Expansion Slots
Expansion Slots :4, 6 (total) / 6 (free) x expansion slot
Interface Provided
Interfaces :1 x management, 4 x 1000Base-TX, 1 x management – RJ-45
OS Provided
Type :ScreenOS
Power Device
Type :Internal power supply
Power Provided :350 watt
Nominal Voltage :AC 120/230 V
Frequency Required :50/60 hertz
Miscellaneous
TAA Compliant :Yes
Height (Rack Units) :2
Encryption Algorithm :PKI, AES, MD5, Triple DES, RSA, DES, IKE, SHA-1
Authentication Method :SecurID, RADIUS, LDAP, Secure Shell v.2 (SSH2), X.509 certificates
Compliant Standards :C-Tick, NEBS level 3, cUL, VCCI Class A ITE, UL, FCC Class B certified, CSA, CB, BSMI
Dimensions & Weight
Width :17.4 inch
Depth :21.1 inch
Height :3.4 inch
Weight :22.93 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :122 degree Fahrenheit
Humidity Range Operating :10 – 90%
