Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks Secure Services Gateway

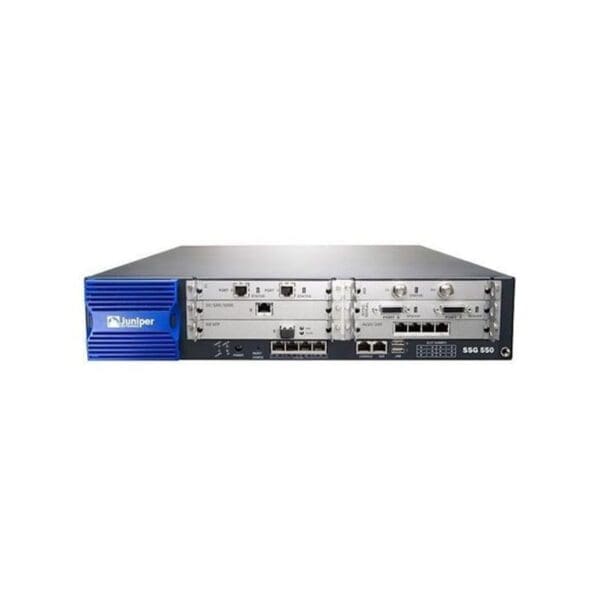

Model :SSG 550M
Packaged Quantity :1
Chassis
Built-in Devices :LED panel
RAM
Installed Size :1 GB
Optical Storage
Type :None
Performance
Performance :Firewall throughput (large packets): 1+ Gbps, 3DES throughput: 500 Mbps, Firewall throughput (IMIX): 1 Gbps
Capacity
Capacity :Security policies: 4000, Static routes: 20000, Concurrent sessions: 128000, Concurrent VPN tunnels: 1000, VPN tunnel interfaces: 300, Connection / user qty: unlimited, Security zones: 60, Authenticated users (internal database): 1500
Networking
Type :Security appliance
Form Factor :External
Connectivity Technology :Wired
Data Link Protocol :HDLC, FRF.16, Fast Ethernet, Frame Relay, FRF.15, Ethernet, PPP, MLPPP, Gigabit Ethernet
Routing Protocol :OSPF, RIP-1, RIP-2, PIM-SSM, IGMP, BGP, Static IP routing, PIM-SM, IGMPv2
Network / Transport Protocol :L2TP, PPPoE, IPSec, NetBEUI/NetBIOS
Remote Management Protocol :Telnet, SNMP 2, HTTP, HTTPS, SNMP
Status Indicators :Status, Transmit, Link/activity, Alarm, Receive, Port status, Power
Features :DDos attack prevention, High Availability, DoS attack prevention, 168-bit encryption, VLAN support, Firmware upgradable, Quality of Service (QoS), URL filtering, DiffServ support, VPN support, Modular design, PAT support, Syslog support, Routing, DHCP support, LDAP support, NAT support, 56-bit encryption, Transparency, Firewall protection
Compliant Standards :IEEE 802.1x, X.509
IP Telephony
VoIP :Yes
VoIP Protocols :SIP, SCCP, MGCP, H.323
Expansion Slots
Expansion Slots :6 (total) / 6 (free) x expansion slot, 4
Interface Provided
Interfaces :1 x management – RJ-45, 4 x 1000Base-TX, 1 x management
OS Provided
Type :ScreenOS
Power Device
Type :Internal power supply
Hot-Plug :Hot-plug
Power Provided :420 watt
Nominal Voltage :DC -48/-60 V
Miscellaneous
TAA Compliant :Yes
Height (Rack Units) :2
Encryption Algorithm :RSA, AES, MD5, IKE, Triple DES, DES, SHA-1, PKI
Authentication Method :Secure Shell v.2 (SSH2), RADIUS, X.509 certificates, LDAP, SecurID
Compliant Standards :cUL, CB, CSA, C-Tick, FCC Class B certified, BSMI, NEBS level 3, UL, VCCI Class A ITE
Dimensions & Weight
Width :17.4 inch
Depth :21.1 inch
Height :3.4 inch
Weight :25.57 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :122 degree Fahrenheit
Humidity Range Operating :10 – 90%
