Manufacturer :APC
Brand :APC

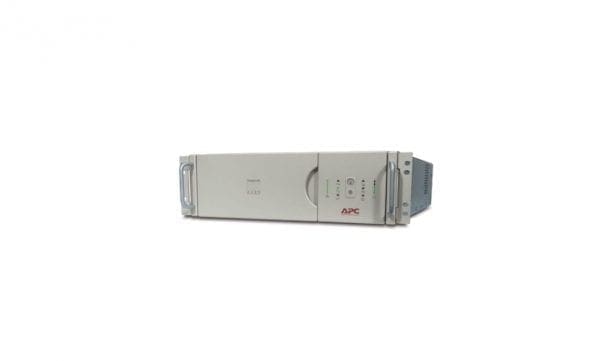

Product Line :APC Smart-UPS
Country Kits :Peru, Salvador, Costa Rica, Puerto Rico, Belize, Chile, Antigua and Barbuda, Anguilla, Venezuela, Bolivia, Netherlands Antilles, Ecuador, Brazil, Cuba, Uruguay, Panama, Dominican Republic, Falkland Isles, Argentina, Barbados, Mexico, Guatemala, Honduras, Saudi Arabia, Canada, Guyana, Virgin Islands, Jamaica, Paraguay, Nicaragua, Colombia, United States, Aruba
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Expansion Slots
Expansion Slots :1 (total) / 1 (free) x SmartSlot
Interface Provided
Interfaces :1 x management (RS-232) – 9 pin D-Sub (DB-9)
Cable Details
Cables Included :Serial cable – external, Power cable – external – 6 ft
Software
Type :APC PowerChute Smart-UPS Bundle
Power Device
Form Factor :Rack-mountable
Voltage Provided :AC 120 volt
Frequency Provided :50/60 hertz
UPS Output Waveform :Sinewave
Power Provided :1.6 kilograms per millimetere
Power Capacity (VA) :2200 volt ampere per kilogram 2200VA
Voltage Required :AC 120/240 volt
Frequency Required :50/60 hertz
Input Connector Type :Power CEE 7/7, Power CEI 23-16/VII, Power NEMA 5-20, Power BS 1363
Output Connector Type :Power NEMA 5-15
Output Connector Qty :6
Surge Suppression :Yes
Surge Response Time :0 nanosecond
Surge Energy Rating :480 joules
Power Output Connectors Details
Power Output Connectors Details :6 x power NEMA 5-15
Battery
Run Time (Up To) :6.8 minute (time unit)
Load Type :At full load
Recharge Time :3 Hours
Run Time Details
Run Time (Up To) :6.8 min at full load
UPS
Battery Technology :Lead acid
Miscellaneous
Color :Beige
Color Category :Beige
Rack Mounting Kit :Included
Height (Rack Units) :3
Compliant Standards :FCC Class A certified
Dimensions & Weight
Width :19 inch
Depth :25 inch
Height :5.2 inch
Weight :103.18 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95%
Sound Emission :47 dBA
