Manufacturer :APC
Brand :APC

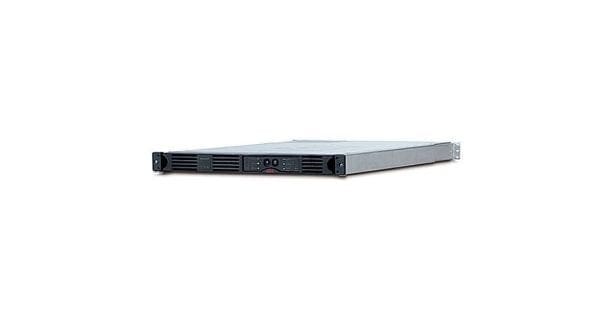

Product Line :APC Smart-UPS RM
Model :1000VA USB
Country Kits :Ecuador, Netherlands Antilles, Honduras, Bolivia, Panama, Costa Rica, Saudi Arabia, Jamaica, Puerto Rico, Nicaragua, Belize, Canada, Colombia, Antigua and Barbuda, Chile, Virgin Islands, Guyana, Mexico, Aruba, Anguilla, Peru, Dominican Republic, Guatemala, Argentina, Uruguay, United States, Paraguay, Cuba, Venezuela, Brazil, Barbados, Falkland Isles, Salvador
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Expansion Slots
Expansion Slots :1 (total) / 1 (free) x SmartSlot
Interface Provided
Interfaces :1 x USB – 4 pin USB Type B, 1 x management (RS-232) – 9 pin D-Sub (DB-9)
Cable Details
Cables Included :USB cable – external, Power cable 6 ft, Serial cable – external
Software
Type :APC PowerChute Smart-UPS Bundle
Power Device
Form Factor :Rack-mountable
Voltage Provided :AC 120 volt
UPS Output Waveform :Sinewave
Power Provided :640 watt
Power Capacity (VA) :1000 volt ampere per kilogram 1000VA
Voltage Required :AC 120 volt
Input Voltage Range :AC 82 – 144 V
Input Voltage Range (Adjustable) :AC 75 – 154 V
Frequency Required :50/60 hertz
Input Connector Type :Power NEMA 5-15
Input Connector Qty :1
Output Connector Type :Power NEMA 5-15
Output Connector Qty :4
Surge Suppression :Yes
Surge Response Time :0 nanosecond
Surge Energy Rating :480 joules
Power Output Connectors Details
Power Output Connectors Details :4 x power NEMA 5-15
Battery
Run Time (Up To) :5.4 minute (time unit)
Load Type :At full load
Recharge Time :2 Hours
Run Time Details
Run Time (Up To) :5.4 min at full load
UPS
Battery Technology :Lead acid
Miscellaneous
Color :Black
Color Category :Black
Rack Mounting Kit :Included
Height (Rack Units) :1
Equipment Protection Value :150000 US Dollars
Compliant Standards :FCC Class A certified
Features :Audible alarm
Dimensions & Weight
Width :17 inch
Depth :26 inch
Height :1.7 inch
Weight :48.06 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95%
Sound Emission :45 dBA
