Manufacturer :APC
Brand :APC

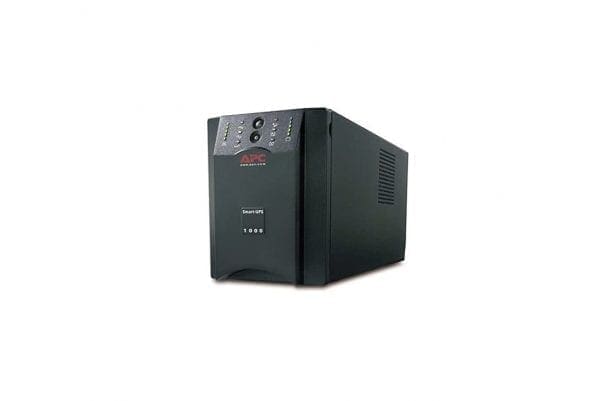

Product Line :APC Smart-UPS
Country Kits :Canada, United States
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Expansion Slots
Expansion Slots :1 (total) / 1 (free) x SmartSlot
Interface Provided
Interfaces :1 x management (RS-232) – 9 pin D-Sub (DB-9), 1 x management (USB) – 4 pin USB Type A
Cable Details
Cables Included :Power cable – external – 6 ft, 2 x serial cable – external
Software
Type :Drivers & Utilities, APC PowerChute Smart-UPS Bundle
Power Device
Form Factor :External
UPS Technology :Line interactive
Voltage Provided :AC 120 volt
Frequency Provided :50/60 hertz
UPS Output Waveform :Sinewave
Power Provided :800 watt
Power Capacity (VA) :1000 volt ampere per kilogram 1000VA
Voltage Required :AC 120 volt
Input Voltage Range :AC 82 – 144 V
Input Voltage Range (Adjustable) :AC 75 – 154 V
Frequency Required :50/60 hertz
Input Connector Type :Power NEMA 5-15
Input Connector Qty :1
Output Connector Type :Power NEMA 5-15
Output Connector Qty :8
Surge Suppression :Yes
Surge Response Time :0 millisecond
Surge Energy Rating :459 joules
Circuit Protection :Circuit breaker
Power Output Connectors Details
Power Output Connectors Details :8 x power NEMA 5-15
Battery
Run Time (Up To) :9.6 minute (time unit)
Load Type :At full load
Recharge Time :5 Hours
Supported Battery
Technology :Lead acid
Run Time Details
Run Time (Up To) :9.6 min at full load
UPS
Battery Technology :Lead acid
Miscellaneous
Color :Black
Color Category :Black
Equipment Protection Value :150000 US Dollars
Compliant Standards :FCC Class A certified, CSA, BSMI, UL 1778, UL 1449
Features :LED display, Audible alarm
Dimensions & Weight
Width :6.7 inch
Depth :17.3 inch
Height :8.5 inch
Weight :42.11 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95%
Sound Emission :42 dBA
