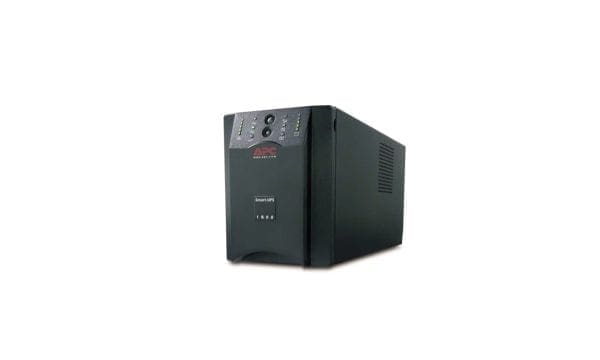

Manufacturer :APC
Brand :APC
Product Line :APC Smart-UPS
Model :1500VA USB & Serial
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Networking
Remote Management Interface :RS-232, USB
Expansion Slots
Expansion Slots :1 (total) / 1 (free) x SmartSlot
Interface Provided
Interfaces :1 x USB – 4 pin USB Type B, 1 x management (RS-232) – 9 pin D-Sub (DB-9)
Cable Details
Cables Included :Serial cable – external, USB cable – external, Power cable – external – 6 ft
Software
Type :Drivers & Utilities
Power Device
Form Factor :External
UPS Technology :Line interactive
Voltage Provided :AC 220/230/240 volt
Frequency Provided :50/60 hertz
UPS Output Waveform :Sinewave
Power Capacity (VA) :1500 volt ampere per kilogram 1500VA
Voltage Required :AC 230 volt
Input Voltage Range :AC 160 – 286 V
Input Voltage Range (Adjustable) :AC 151 – 302 V
Frequency Required :50/60 hertz
Input Connector Type :Power IEC 60320 C14
Input Connector Qty :1
Output Connector Type :Power IEC 60320 C13
Output Connector Qty :8
Surge Suppression :Yes
Surge Energy Rating :480 joules
Circuit Protection :Circuit breaker
Power Device Features :Audible alarm, LED indicators
Power Output Connectors Details
Power Output Connectors Details :8 x power IEC 60320 C13
Battery
Run Time (Up To) :6.7 minute (time unit)
Load Type :At full load
Recharge Time :3 Hours
Run Time Details
Run Time (Up To) :6.7 min at full load
UPS
Batteries Qty :1
Battery Technology :Lead acid
Miscellaneous
Color :Black
Color Category :Black
Compliant Standards :GOST, UL, VDE, C-Tick, EN 50091-1, EN 50091-2
Dimensions & Weight
Width :6.7 inch
Depth :17.3 inch
Height :8.5 inch
Weight :53.13 lbs
Dimensions & Weight (Shipping)
Shipping Width :13 inch
Shipping Depth :23 inch
Shipping Height :15 inch
Shipping Weight :58.2 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95%
Sound Emission :45 dBA
