Manufacturer :APC
Brand :APC

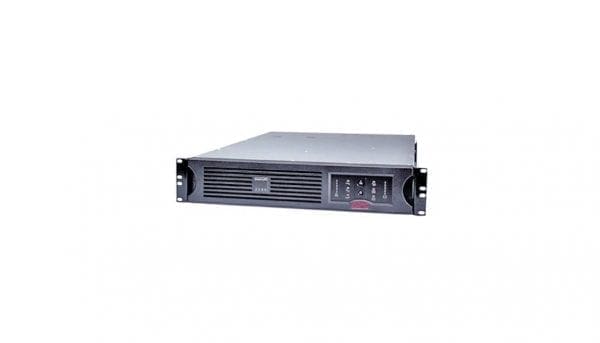

Product Line :APC Smart-UPS
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Output
Max Configurable Power (Watts)
2.7kWatts / 3.0kVA
Efficiency at Full Load 96.0 %
Output Voltage Distortion
Less than 5% at full load
Output Frequency (sync to mains)
47 – 53 Hz for 50 Hz nominal, 57 – 63 Hz for 60 Hz nominal
Load Crest Factor
Topology Line Interactive
Waveform type Sine wave
Input
Input frequency
50/60 Hz +/- 3 Hz (auto sensing)
Input voltage range for main operations
160 – 285V
Input voltage adjustable range for mains operation
151 – 302V
Number of Power Cords 1
Efficiency at Full Load 96.0 %
Batteries & Runtime
Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time 3hour(s)
Replacement Battery RBC43
Expected Battery Life (years) 3 – 5
RBC Quantity 1
Battery Volt-Amp-Hour Capacity 528
Runtime
View Runtime Graph
View Runtime Chart
Communications & Management
Interface Port(s)
DB-9 RS-232, Smart-Slot, USB
Control panel
LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators
Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Emergency Power Off (EPO) Yes
Available SmartSlot™ Interface Quantity 1
Surge Protection and Filtering
Surge energy rating
480Joules
Filtering
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Physical
Maximum Height
3.5inches (89MM, 8.9CM)
Maximum Width
19.0inches (483MM, 48.3CM)
Maximum Depth
26.0inches (660MM, 66.0CM)
Net Weight
96.0lbs. (43.64KG)
Shipping weight
125.0lbs. (56.82KG)
Shipping Height
10.0inches (254MM, 25.4CM)
Shipping Width
24.5inches (622MM, 62.2CM)
Shipping Depth
38.6inches (980MM, 98.0CM)
Color Black
Units per Pallet 8.0
Environmental
Operating Temperature
32 – 104 °F (0 – 40 °C)
Operating Relative Humidity
0 – 95 %
Operating Elevation
0-10000ft (0-3000meters)
Storage Temperature
-15 – 45 °C
Storage Relative Humidity
0 – 95 %
Storage Elevation
0-50000ft (0-15000meters)
Audible noise at 1 meter from surface of unit
47.0dBA
Online thermal dissipation
400.0BTU/hr
