Manufacturer :APC
Brand :APC

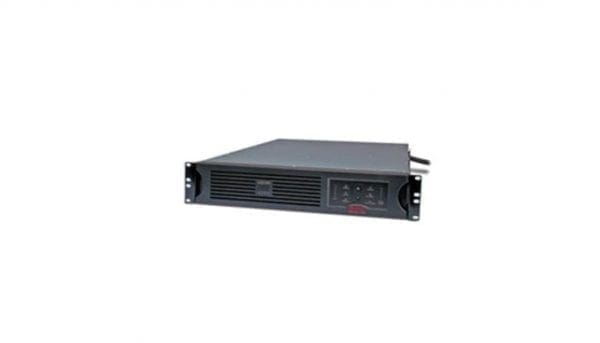

Product Line :APC Smart-UPS
Packaged Quantity :1
Output
Max Configurable Power (Watts) 2.7kWatts / 3000VA
Output Voltage Distortion Less than 5% at full load
Output Frequency (sync to mains) 47 – 53 Hz for 50 Hz nominal, 57 – 63 Hz for 60 Hz nominal
Topology Line Interactive
Waveform type Sine wave
Transfer Time 2ms typical
Input
Input frequency 50/60 Hz +/- 3 Hz (auto sensing)
120V
Input voltage range for main operations 82 – 144V
Input voltage adjustable range for mains operation 75 – 154V
Number of Power Cords 1
Batteries & Runtime
Battery type Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time 3hour(s)
Replacement Battery RBC43
Expected Battery Life (years) 3 – 5
RBC Quantity 1
Battery Charge Power (Watts) 175Watts
Battery Volt-Amp-Hour Capacity 528
Runtime
View Runtime Graph
View Runtime Chart
Efficiency
View Efficiency Graph
Communications & Management
Interface Port(s) DB-9 RS-232, SmartSlot, USB
Control panel
LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators
Audible Alarm
Alarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO) Yes
Available SmartSlot™ Interface Quantity 1
Surge Protection and Filtering Surge energy rating
480Joules
Filtering
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Physical
Maximum Height 3.5inches (89MM, 8.9CM)
Maximum Width 19.0inches (483MM, 48.3CM)
Maximum Depth 26.0inches (660MM, 66.0CM)
Net Weight 96.0lbs. (43.64KG)
Shipping weight 125.0lbs. (56.82KG)
Shipping Height 10.0inches (254MM, 25.4CM)
Shipping Width 24.5inches (622MM, 62.2CM)
Shipping Depth 38.6inches (980MM, 98.0CM)
Color Black
Units per Pallet 8.0
Environmental
Operating Temperature 32 – 104 °F (0 – 40 °C)
Operating Relative Humidity 0 – 95 %
Operating Elevation 0-10000ft (0-3000meters)
Storage Temperature -15 – 45 °C
Storage Relative Humidity 0 – 95 %
Storage Elevation 0-50000ft (0-15000meters)
Audible noise at 1 meter from surface of unit 47.0dBA
Online thermal dissipation 400.0BTU/hr
Protection Class —
Conformance
Approvals BSMI, CSA, UL 1449, UL 1778, FCC Part 15 Class A
Equipment protection policy
Lifetime : $150000
Standard warranty
2 years repair or replace, optional on-site warranties available, optional extended warranties available
Sustainable Offer Status
RoHS Compliant
REACH
REACH: Contains SVHCs
PEP
Available in Documentation tab
EOLI
Available in Documentation tab
Other Environmental Compliance
China RoHS
Proposition 65 Warning
Available in Documentation tab
