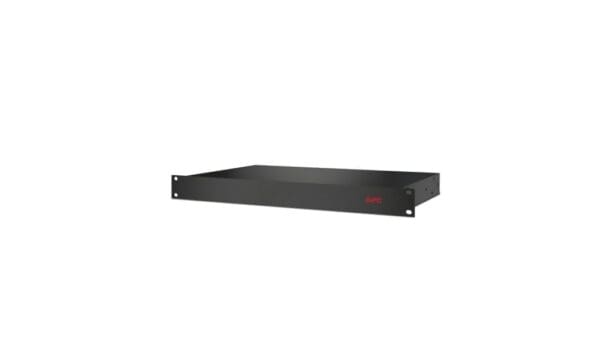

Manufacturer :APC
Brand :APC
Product Line :APC
Model :Marine Application Filter
Packaged Quantity :1
General
Subcategory :Surge protection and power conditioning
Product Type :Surge protector
Power Device
Form Factor :Rack-mountable
Voltage Provided :AC 200/208/220/230/240 volt
Power Capacity (VA) :6000 volt ampere per kilogram
Max Electric Current :32 ampere
Voltage Required :AC 200/208/220/230/240 volt
Input Voltage Range :AC 180 – 264 V
Frequency Required :45 – 65 hertz
Input Connector Type :Hardwire 3-wire
Surge Suppression :Yes
Power Output Connectors Details
Power Output Connectors Details :1 x hardwire 3-wire (HN + G), 1 x terminal block (screw)
Miscellaneous
Color :Black
Color Category :Black
Rack Mounting Kit :Included
Height (Rack Units) :1
Compliant Standards :DNV, REACH, RoHS
Dimensions & Weight
Width :19 inch
Depth :13 inch
Height :1.7 inch
Weight :14.84 lbs
Dimensions & Weight (Shipping)
Shipping Width :22 inch
Shipping Depth :16 inch
Shipping Height :3 inch
Shipping Weight :18.23 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :131 degree Fahrenheit
Humidity Range Operating :0 – 95%
