Manufacturer :APC
Brand :APC

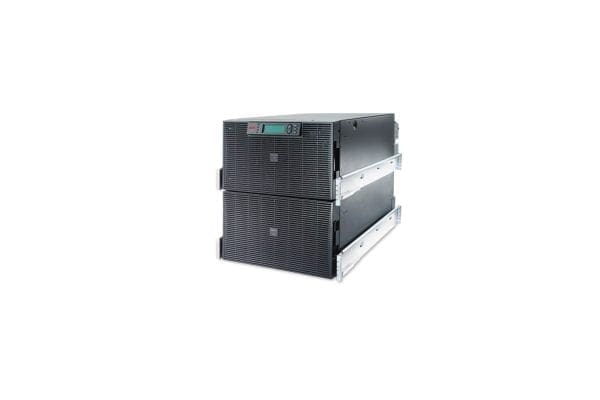

Product Line :APC Smart-UPS RT
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Networking
Remote Management Interface :Ethernet 10/100, RS-232
Remote Management Protocol :HTTP, HTTPS, Telnet, SNMP
Expansion Slots
Expansion Slots :SmartSlot
Interface Provided
Interfaces :1 x management (RS-232) – 9 pin D-Sub (DB-9), 1 x management (Ethernet) – RJ-45, 1 x EPO (emergency power off)
Cable Details
Cables Included :Serial cable – external
Software
Type :Drivers & Utilities
Power Device
Form Factor :Rack-mountable
UPS Technology :On-line
Voltage Provided :AC 220/230/240 volt
Voltage Provided Margin :± 5%
Frequency Provided :50/60 hertz
UPS Output Waveform :Sinewave
Power Provided :16 kilograms per millimetere
Power Capacity (VA) :20000 volt ampere per kilogram 20000VA
Voltage Required :AC 220/230/240 volt
Input Voltage Range :AC 160 – 280 V
Frequency Required :50/60 hertz
Input Wiring :3-phase / 1-phase
Input Connector Type :Hardwire 3-wire (1PH + N + G), Hardwire 5-wire (3PH + N + G)
Input Connector Qty :1
Output Connector Type :Hardwire 3-wire (HN + G), Hardwire 5-wire (3PH + N + G), Power IEC 60320 C19
Output Connector Qty :10
Surge Suppression :Yes
Circuit Protection :Circuit breaker
Power Device Features :Built-in static bypass, Emergency power off, LCD display, Audible alarm, Internal bypass
Power Output Connectors Details
Power Output Connectors Details :1 x hardwire 5-wire (3PH + N + G), 8 x power IEC 60320 C19, 1 x hardwire 3-wire (2PH + G)
Battery
Voltage Provided :192 volt
Run Time (Up To) :4.9 minute (time unit)
Load Type :At full load
Recharge Time :2.5 Hours
Run Time Details
Run Time (Up To) :4.9 min at full load
UPS
Batteries Qty :4
Battery Technology :Lead acid
Miscellaneous
Color :Black
Color Category :Black
Rack Mounting Kit :Included
Height (Rack Units) :12
Compliant Standards :IEC 62040-1-1, UL 1449, VDE
Dimensions & Weight
Width :17 inch
Depth :30.4 inch
Height :21 inch
Weight :546.74 lbs
Dimensions & Weight (Shipping)
Shipping Width :24 inch
Shipping Depth :39.4 inch
Shipping Height :39 inch
Shipping Weight :692.24 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95%
Sound Emission :59 dBA
