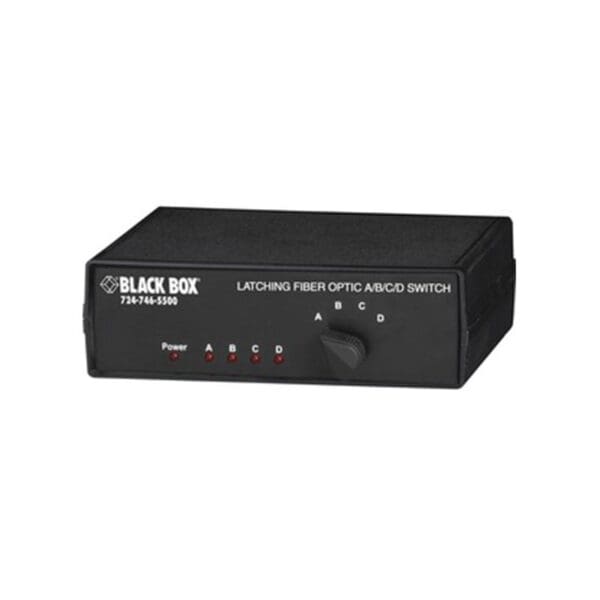

SW1005A Black Box Fiber Optic A B C D Switch, Latching, ST

SW1005A Black Box Fiber Optic A B C D Switch, Latching, ST

$1,855.00

The switch operates using a unique all-optical micro-mirror, eliminating the complexity and vulnerabilities of electronic fiber switches. The non-latching version falls back to C-to-A position if power is lost. Operate transparently to signal rates formats and wavelengths and don’t require an upgrade when your data protocols change or speeds increase. Work with 62.5-/125-micron multimode. Universal 100–240-VAC power supply. There’s a reason why these types of manual switches continue to be the switches of choice for networking professionals everywhere The tried-and-true optical switches perform as promised year after year.

SW1005A Black Box Fiber Optic A B C D Switch, Latching, ST
$1,855.00
Contact Us

Manufacturer: Black Box Corporation

Manufacturer Part Number: SW1005A

Brand Name: Black Box

Product Name: Fiber Optic A/B/C/D Desktop Switch – Latching, ST Multimode

Product Condition: New

Product Type: Fiber Optic Switchbox

TECHNICAL INFORMATION

Switching Type: Manual

POWER DESCRIPTION

Frequency: 60 Hz, 50 Hz

PHYSICAL CHARACTERISTICS

Height: 2.5″

Width: 8″

Depth: 6.3″

Weight (Approximate): 4 lb

MISCELLANEOUS

Additional Information

Compatibility : 62.5-/125-micron multimode fiber

Crosstalk : -45 dB (typical) per FOTP-42

MTBF : 100,000 hours or 1,000,000 cycles

Sensitivity : 750 to 1440 nanometers

Connectors : Fiber ports: (5) pairs of ST

Power: (1) 3.5-mm input

Certifications & Standards : FCC, CE

TAA Compliant: Yes

SKU: SW1005A Category: Tag:
