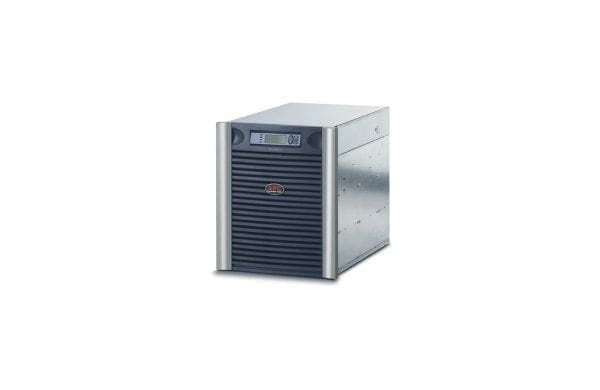

Manufacturer :American Power Symmetra/Silcon
Brand :APC
Product Line :APC Symmetra LX
Model :8kVA Scalable to 8kVA N+1
Packaged Quantity :1
General
Subcategory :UPS
Product Type :Power array
Networking
Remote Management Interface :Ethernet 10/100
Expansion Slots
Expansion Slots :2 (total) / 1 (free) x SmartSlot
Interface Provided
Interfaces :1 x management (Ethernet), 1 x management (RS-232) – 9 pin D-Sub (DB-9)
Power Device
Form Factor :Rack-mountable
Voltage Provided :AC 120/208 volt
Voltage Provided Margin :± 5%
Frequency Provided :47 – 63 hertz
UPS Output Waveform :Sinewave
Power Capacity (VA) :8000 volt ampere per kilogram 8000VA
Voltage Required :AC 208/240 volt
Input Voltage Range :AC 155 – 276 V
Frequency Required :45 – 65 hertz
Input Connector Type :Hardwire
Input Connector Qty :1
Output Connector Type :Hardwire, Power NEMA L14-30, Power NEMA L5-20
Output Connector Qty :7
Power Output Connectors Details
Power Output Connectors Details :2 x power NEMA L14-30, 4 x power NEMA L5-20, 1 x hardwire
Battery
Run Time (Up To) :5.9 minute (time unit)
Load Type :At full load
Supported Battery
Technology :Lead acid
Run Time Details
Run Time (Up To) :5.9 min at full load
UPS
Batteries Qty :2
Battery Technology :Lead acid
Miscellaneous
Color :Silver, Black
Color Category :Silver, Black
Height (Rack Units) :13
Compliant Standards :IEC 60950, GOST, EN 60950, EN55022 Class A, EN55024, C-Tick, EN 50091-2, VDE
Features :Emergency power off, LCD display, Audible alarm
Dimensions & Weight
Width :18.5 inch
Depth :27.2 inch
Height :22.4 inch
Weight :392.42 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95%
