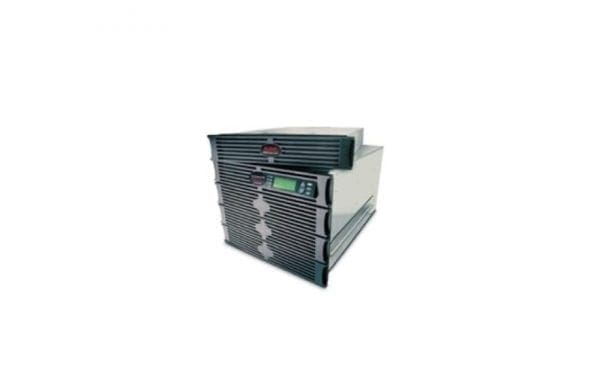

SYH6K6RMT-TF3 APC Symmetra RM 6kVA Scalable to 6kVA N+1

SYH6K6RMT-TF3 APC Symmetra RM 6kVA Scalable to 6kVA N+1

$11,421.00

The Symmetra RM brings the proven and patented Symmetra Power Array technology in a rack-mountable form. With more servers, storage products and other mission-critical IT equipment becoming rack-based, the need is increasing for high availability innovative rack-based power solutions. Symmetra RM meets this need with scalable, redundant units.

Symmetra Rack Mount is an ideal solution for branch office locations, small and medium business data centers, internetworking and telecom racks, and all other high availability applications. In addition to the advantages of hot-swappability and redundancy, rack users can also benefit from Symmetra’s self-diagnosing, scalable components and integrated Web/SNMP management features.

SYH6K6RMT-TF3 APC Symmetra RM 6kVA Scalable to 6kVA N+1
$11,421.00
Contact Us

Manufacturer :APC

Brand :APC

Product Line :APC Symmetra RM

Model :6 kVA scalable to 6kVA N+1

Packaged Quantity :1

General

Subcategory :UPS

Product Type :Power array

Networking

Remote Management Interface :Ethernet

Remote Management Protocol :Telnet, SNMP, HTTP

Interface Provided

Interfaces :1 x management (Ethernet) – RJ-45, 1 x management (RS-232) – 9 pin D-Sub (DB-9)

Cable Details

Cables Included :Power cable 6 ft

Software

Type :APC PowerChute Symmetra Bundle

Power Device

Form Factor :Rack-mountable

Voltage Provided :AC 208/240 volt

Voltage Provided Margin :± 5%

Frequency Provided :57 – 63 hertz

UPS Output Waveform :Sinewave

Power Capacity (VA) :6000 volt ampere per kilogram 6000VA

Voltage Required :AC 208 volt

Input Voltage Range :AC 155 – 276 V

Frequency Required :50/60 hertz

Input Connector Type :Hardwire, Power NEMA L6-30

Input Connector Qty :2

Output Connector Type :Power NEMA L6-20, Power NEMA L5-20

Output Connector Qty :6

Circuit Protection :Circuit breaker

Power Output Connectors Details

Power Output Connectors Details :2 x power NEMA L6-20, 4 x power NEMA L5-20

Battery

Run Time (Up To) :12.3 minute (time unit)

Load Type :At full load

Run Time Details

Run Time (Up To) :12.3 min at full load

UPS

Batteries Qty :6

Supported Batteries Qty :6

Battery Technology :Lead acid

Miscellaneous

Color :Black

Color Category :Black

Rack Mounting Kit :Included

Compliant Standards :UL 1778, FCC Class A certified, CSA

Features :Audible alarm

Dimensions & Weight

Width :18.9 inch

Depth :28.7 inch

Height :17.3 inch

Weight :390.21 lbs

Environmental Parameters

Min Operating Temperature :32 degree Fahrenheit

Max Operating Temperature :104 degree Fahrenheit

Humidity Range Operating :0 – 95%

SKU: SYH6K6RMT-TF3 Category: Tag:
