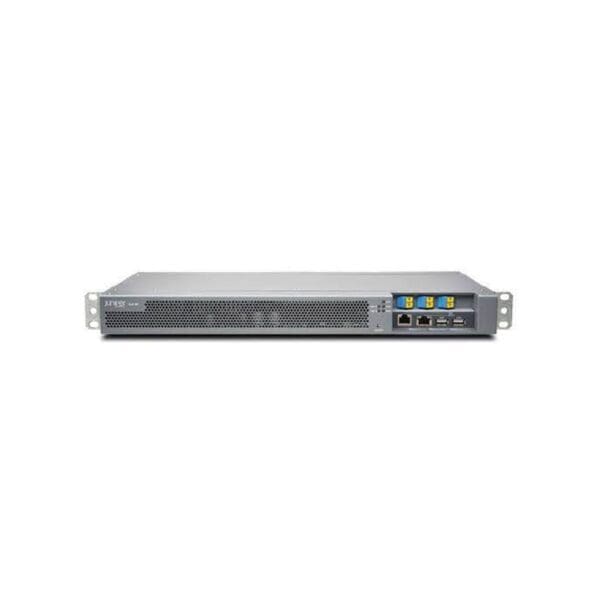

TCX1000-ILA-DC Juniper TCX1000 1U Bi-Directional Inline Amplifier (ILA)

TCX1000-ILA-DC Juniper TCX1000 1U Bi-Directional Inline Amplifier (ILA)

$46,000.00

The Juniper TCX1000 Inline Amplifier (ILA) provides gain-flattened amplification, with the ability to tilt the spectrum for coarse spectrum equalization. Inline amplification provides a low-cost, low noise, high-density amplification solution for sites that do not require access to traffic on the line. The ILA embeds an OSC solution that provides a 100 Mb/s Ethernet channel on a 1511 nm carrier. It is compatible with the TCX1000 Programmable ROADM optical supervisory channel, which provides the ability to access ILA nodes remotely using in-band management, required for ILA sites where DCN access may be limited.

TCX1000-ILA-DC Juniper TCX1000 1U Bi-Directional Inline Amplifier (ILA)
$46,000.00
Contact Us

Manufacturer :Netscreen

Brand :Juniper, Juniper Networks

Product Line :Juniper Networks Programmable ROADM

Model :TCX1000

Packaged Quantity :1

Networking

Type :Repeater

Form Factor :Rack-mountable

Connectivity Technology :Wired

Cabling Type :Ethernet 100Base-TX, Fiber optic

Data Link Protocol :Ethernet, Fast Ethernet

Data Transfer Rate :100 MBps

Optical Wave Length :1511 nm

Features :10 – 35 dB gain range, Erbium Doped Fiber Amplifier (EDFA), 3 fans

Interface Provided

Interfaces :1 x console – RJ-45 female, 2 x USB – Type A female, 1 x management – RJ-45 female

Power Device

Type :Internal power supply

Installed Qty :1

Nominal Voltage :DC -40 -72 V

Power Consumption Operational :75 watt

Miscellaneous

Color Category :Gray

Height (Rack Units) :1

SKU: TCX1000-ILA-DC Category: Tag:
