Model

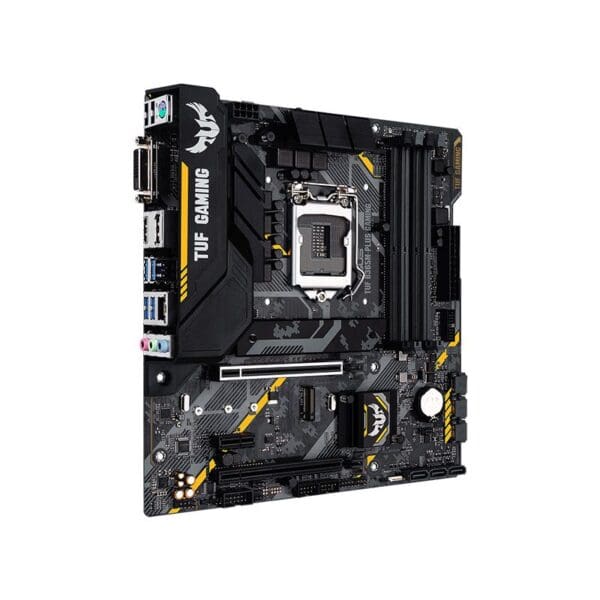

B365M-PLUS GAMING (WI-FI)
Supported CPU
CPU Socket Type
LGA 1151 (300 Series)
CPU Type
Intel Socket 1151 9th/8th Gen Intel Core, Pentium Gold and Celeron Processors
* Refer to www.asus.com for CPU support list
Supported CPU Technologies
Supports Intel Turbo Boost Technology 2.0
* The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
Chipsets
Intel B365
Onboard Video
Onboard Video Chipset
Integrated Graphics Processor- Intel HD Graphics support
Multi-VGA output support : HDMI/DVI-D/DisplayPort ports
– Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz
– Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
– Supports DisplayPort 1.2 with max. resolution 4096 x 2304 @ 60 Hz
Maximum shared memory of 1024 MB (for iGPU exclusively)
Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
Supports up to 3 displays simultaneously
Memory
Number of Memory Slots
4×288pin
Memory Standard
DDR4 2666/ 2400/ 2133 MHz
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* The maximum memory frequency supported varies by processor.
** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel 8th Gen. 6-core or higher processors.
Maximum Memory Supported
64GB
Channel Supported
Dual Channel
Expansion Slots
PCI Express 3.0 x16
1 x PCIe 3.0 x16 (x16 mode)
1 x PCIe 3.0 x16 (max at x4 mode)
PCI Express x1
1 x PCIe 3.0/2.0 x1
Storage Devices
SATA 6Gb/s
6 x SATA 6Gb/s
M.2
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x4 mode)
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x4 mode)
Intel Optane Ready
Yes
SATA RAID
0/1/5/10
Onboard Audio
Audio Chipset
Realtek ALC1200
Audio Channels
8-Channel
* Choose the chassis with HD audio module in front panel to support 8-channel audio output.
Onboard LAN
LAN Chipset
Intel I219-V
Max LAN Speed
10/100/1000Mbps
Rear Panel Ports
Back I/O Ports
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.1 Gen 1 Type-A up to 5Gbps
2 x USB 2.0
1 x 8-channel Audio I/O
Internal I/O Connectors
Onboard USB
1 x USB 3.1 Gen 1 (up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin, moss green)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
Other Connectors
1 x Addressable RGB header
1 x Aura RGB Strip Header
1 x COM port(s) connector(s)
1 x CPU Fan connector(s)
2 x Chassis Fan connector(s)
1 x S/PDIF out header(s)
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
Physical Spec
Form Factor
Micro ATX
LED Lighting
RGB
Dimensions (W x L)
9.6″ x 9.5″
Power Pin
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
