Bay Provided
Form Factor :2.5″ SFF
Free Qty :6
Total Qty :8
Cache Memory
Installed Size :30 MB
Installed Size :30
Per Processor Size :15 MB
Per Processor Size :15
Type :L3 cache
Chassis
Form Factor :Rack-mountable
Hot-Swap Bays Qty :8
Manufacturer Form Factor :Rack-mountable
Server Storage Bays :Hot swap
Server Swappable Drive Form Factor :2.5″
Server Swappable Drive Form Factor (metric) :6.4 cm
Server Swappable Drive Interface :SATA
Dimensions & Weight
Depth :29.8 in
Height :1.7 in
Width :16.9 in
Display
Type :None.
Environmental Parameters
Humidity Range Operating :10 – 90% (non-condensing)
Max Operating Temperature :95 °F
Min Operating Temperature :41 °F
Expansion Bays
Form Factor (metric) :6.4 cm SFF
Type :Hot-swap
Expansion Slots
Size :Half-length, low-profile
Size :Three-quarter-length, full-height
Slot Comments :X16 mode
Type :PCIe 3.0 x24
Type :CPU
Type :DIMM 288-pin
Type :SD card (internal)
Hard Drive
Installed Qty :2
Interface Class :Serial Attached SCSI
Removable :Hot-swap
Spindle Speed :10000 rpm
Type :HDD
Hard Drive (2nd)
Type :None
Hard Drive (3rd)
Type :None
Header
Brand :Cisco
Compatibility :PC
Manufacturer :Cisco Unified Computing

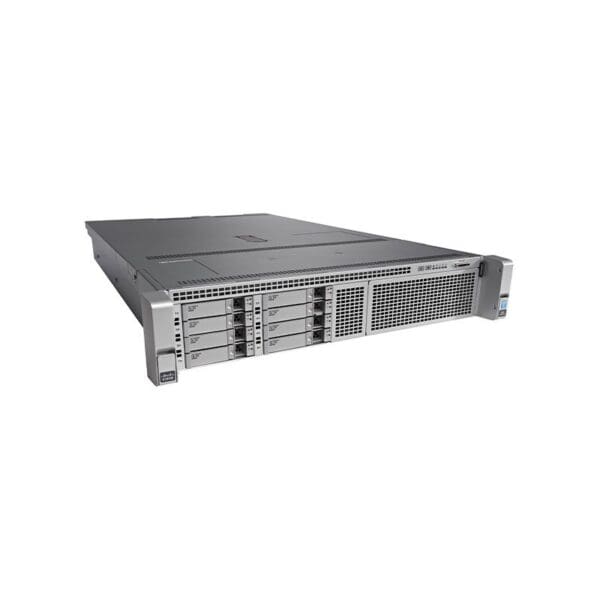

Model :C220 M4 High-Density Rack Server (Small Form Factor Disk Drive Model)
Packaged Quantity :1
Product Line :Cisco UCS
