Bay Provided
Form Factor :2.5″
Free Qty :8
Total Qty :8 Bays
Cache Memory
Installed Size :20 MB
Per Processor Size :10 MB
Type :L3 cache
Chassis
Form Factor :Rack-mountable
Hot-Swap Bays Qty :8
Manufacturer Form Factor :Rack-mountable
Server Storage Bays :Hot swap
Server Swappable Drive Form Factor :2.5″
Server Swappable Drive Form Factor (metric) :6.4 cm
Server Swappable Drive Interface :SAS
Dimensions & Weight
Depth :28.5 in
Height :1.7 in
Weight :22.05 lbs
Width :16.9 in
Display
Type :None.
Environmental Parameters
Humidity Range Operating :10 – 90% (non-condensing)
Max Operating Temperature :104 °F
Min Operating Temperature :32 °F
Expansion Bays
Form Factor (metric) :6.4 cm
Type :Hot-swap
Expansion Slots
Size :Half-length
Type :PCIe 2.0 x8
Size :Half-length, full-height
Type :PCIe 2.0 x16
Type :CPU
Type :Memory
Hard Drive
Type :No HDD
Hard Drive (3rd)
Type :None
Header
Brand :Cisco
Compatibility :PC
Manufacturer :Cisco Unified Computing

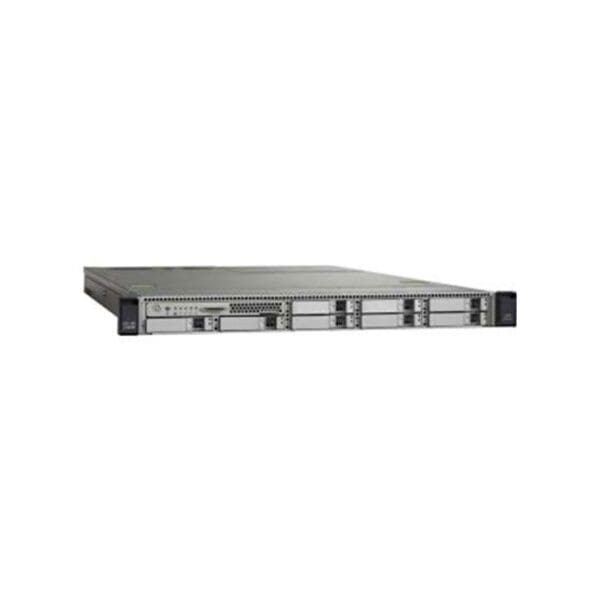

Model :C220 SingleConnect Entry SmartPlay Expansion Pack
Packaged Quantity :1
Product Line :Cisco UCS
Interface Provided
Qty :1
Type :Serial
Qty :2
Type :USB 2.0
Type :KVM
Type :LAN (10 Gigabit Ethernet) (SFP+)
Type :LAN (Gigabit Ethernet)
Type :Management (NIC)
Type :VGA
Mainboard
Processor Socket :LGA2011 Socket
Miscellaneous
Color Category :Gray
Compliant Standards :AS/NZS 60950-1, BSMI CNS 13438 Class A, CISPR 22 Class A, CISPR 24, CSA C22.2 No. 60950-1, EN 300 386, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN55022 Class A, EN55024, FCC CFR47 Part 15, GB 4943, ICES-003 Class A, IEC 60950-1, UL 60950-1, VCCI Class A ITE
Height (Rack Units) :1
Included Accessories :2 x CPU Heatsink, Rack rail kit
Networking
Compliant Standards :IEEE 802.1p, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.3ae, IEEE 802.3x
Data Link Protocol :10 Gigabit Ethernet, 10Gb Fibre Channel over Ethernet (FCoE), Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet Controller(s) :Cisco UCS Virtual Interface Card 1225
Ethernet Ports :2 x Gigabit Ethernet, 2 x SFP+
Form Factor :Plug-in module
Remote Management Protocol :CLI, IPMI 2.0
Optical Storage
Drive Type :No optical drive
Type :None
Optical Storage (2nd)
Type :None
Power Device
Frequency Required :50/60 Hz
Installed Qty :2
Max Supported Qty :2
Nominal Voltage :AC 120/230 V
Power Provided :650 Watt
Power Redundancy :Yes
Power Redundancy Scheme :1+1
Type :Power supply
Printer
Type :None
Processor
Clock Speed :2.5 GHz
Installed Qty :2
Manufacturer :Intel
Max Supported Qty :2
Number of Cores :Quad-Core
Processor Main Features :Enhanced Intel SpeedStep Technology, Hyper-Threading Technology, Intel Virtualization Technology
Processor Number :E5-2609V2
Server Scalability :2-way
Type :Xeon
Upgradability :Upgradable
RAM
Configuration Features :4 x 8 GB
Features :Dual rank, Low-voltage, Registered
Installed Size :32 GB
Max Supported Size :256 GB
Memory Specification Compliance :PC3-14900
Memory Speed :1866 MHz
Rated Memory Speed :1866 MHz
Technology :DDR3 SDRAM
Free Qty :0
Total Qty :2
Free Qty :12
Total Qty :16
Total Qty :1
Storage Controller
Channel Qty :8
Installed Qty :1
Interface Type :Serial ATA-600 / SAS 2.0
RAID Level :RAID 0, RAID 1, RAID 10, RAID 5, RAID 50
Storage Controller Name :LSISAS2008
Type :RAID
