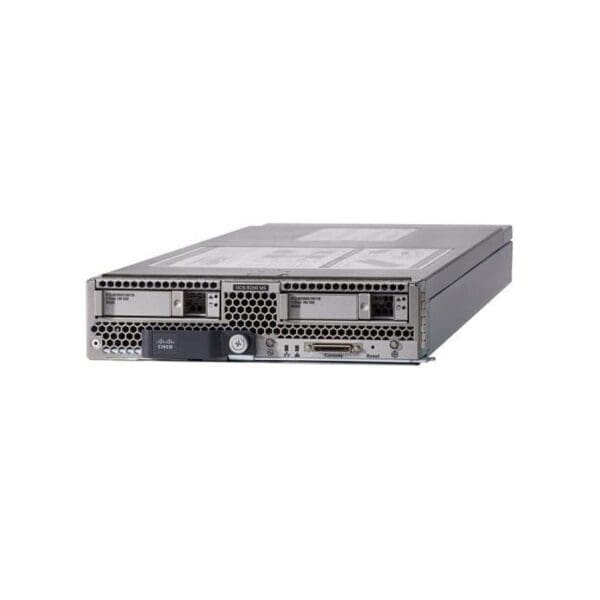

UCS-EZ8-B200M4-P Cisco UCS Smart Play 8 B200 M4 Performance

$12,799.00

The Cisco UCS B200 M4 blade server delivers record performance, expandability, and configurability for workloads ranging from web infrastructure to distributed databases.

UCS-EZ8-B200M4-P Cisco UCS Smart Play 8 B200 M4 Performance
$12,799.00

Bay Provided

Form Factor :2.5″ SFF

Free Qty :2

Total Qty :2 Bays

Cache Memory

Installed Size :70 MB

Per Processor Size :35 MB

Chassis

Form Factor :Blade

Hot-Swap Bays Qty :2

Manufacturer Form Factor :Blade Server

Server Storage Bays :Hot swap

Server Swappable Drive Form Factor :2.5″

Server Swappable Drive Form Factor (metric) :6.4 cm

Server Swappable Drive Interface :SAS

Dimensions & Weight

Depth :24.4 in

Height :2 in

Width :8 in

Display

Type :None.

Environmental Parameters

Humidity Range Operating :5 – 93% (non-condensing)

Max Operating Temperature :95 °F

Min Operating Temperature :50 °F

Expansion Bays

Form Factor (metric) :6.4 cm SFF

Type :Hot-swap

Expansion Slots

Type :CPU

Type :DIMM 288-pin

Type :Expansion slot

Type :SDHC Card (internal)

Hard Drive

Type :No HDD

Hard Drive (2nd)

Type :None

Hard Drive (3rd)

Type :None

Header

Brand :Cisco

Compatibility :PC

Manufacturer :Cisco Unified Computing

Model :Smart Play 8 B200 M4 Performance Expansion Pack

Packaged Quantity :1

Product Line :Cisco UCS

Interface Provided

Location :1 internal

Type :USB 2.0

Qty :1

Type :KVM

Mainboard

Chipset Type :Intel C612

Processor Socket :LGA2011-v3 Socket

Miscellaneous

Color Category :Gray

Compliant Standards :AS/NZS 60950-1, BSMI CNS 13438 Class A, CISPR 22 Class A, CISPR 24, CSA C22.2 No. 60950-1 Second Edition, Directive 2004/108/EC, Directive 2006/95/EC, EN 300386, EN 60950-1 Second Edition, EN 61000-3-2, EN 61000-3-3, EN55022 Class A, EN55024, GB 4943, ICES-003 Class A, IEC 60950-1 Second Edition, KN22 Class A, KN24, UL 60950-1 Second Edition, VCCI Class A

Included Accessories :2 x CPU Heatsink

Networking

Compliant Standards :IEEE 802.1p, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.3ae, IEEE 802.3x

Data Link Protocol :10 Gigabit Ethernet, 10Gb Fibre Channel over Ethernet (FCoE)

Ethernet Controller(s) :Cisco UCS Virtual Interface Card 1340

Ethernet Ports :4 x 10 Gigabit Ethernet

Form Factor :Plug-in module

Remote Management Controller :Cisco Integrated Management Controller

Optical Storage

Drive Type :No optical drive

Type :None

Optical Storage (2nd)

Type :None

OS Provided

Type :No operating system

Printer

Type :None

Processor

Clock Speed :2 GHz

Installed Qty :2

Manufacturer :Intel

Max Supported Qty :2

Max Turbo Speed :3 GHz

Number of Cores :14-core

Processor Main Features :Hyper-Threading Technology, Intel Turbo Boost Technology 2

Processor Number :E5-2683V3

Server Scalability :2-way

Type :Xeon

RAM

Configuration Features :8 x 32 GB

Data Integrity Check :ECC

Empty Slots :16

Features :Load-Reduced DIMM (LRDIMM), Quad rank

Form Factor :DIMM 288-pin

Installed Size :256 GB

Max Supported Size :768 GB

Memory Specification Compliance :PC4-17000

Memory Speed :2133 MHz

Rated Memory Speed :2133 MHz

Slots Qty : 24 DDR4 Slots

Technology :DDR4 SDRAM

RAM Supported

Data Integrity Check :ECC

Max Size :384 GB

Registered or Buffered :Registered

Max Size :768 GB

Registered or Buffered :Load-Reduced
