Bay Provided
Form Factor :2.5″
Free Qty :8
Total Qty :8 Bays
Cache Memory
Installed Size :40 MB
Per Processor Size :20 MB
Type :L3 cache
Chassis
Form Factor :Rack-mountable
Hot-Swap Bays Qty :8
Manufacturer Form Factor :Rack-mountable
Server Storage Bays :Hot swap
Server Swappable Drive Form Factor :2.5″
Server Swappable Drive Form Factor (metric) :6.4 cm
Server Swappable Drive Interface :SAS
Display
Type :None.
Expansion Bays
Form Factor (metric) :6.4 cm
Type :Hot-swap
Expansion Slots
Size :Half-length, low-profile
Size :Three-quarter-length, full-height
Slot Comments :X16 mode
Type :PCIe 3.0 x24
Type :CPU
Type :DIMM 288-pin
Hard Drive
Type :No HDD
Hard Drive (3rd)
Type :None
Header
Brand :Cisco
Compatibility :PC
Manufacturer :Cisco Unified Computing

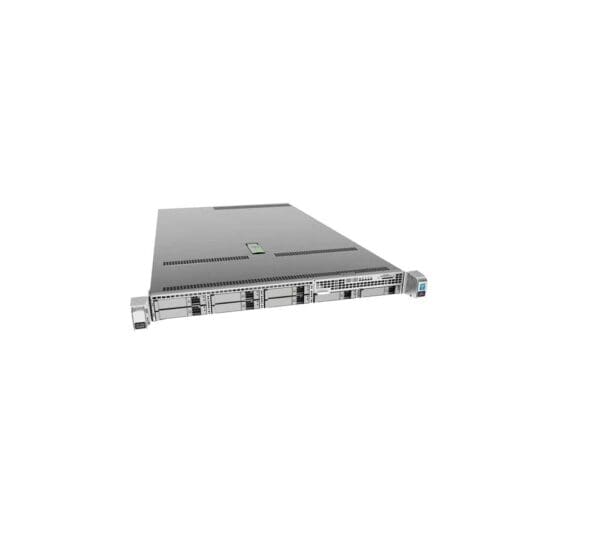

Model :Smart Play 8 C220 M4 SFF Entry Plus Expansion Pack
Packaged Quantity :1
Product Line :Cisco UCS
Interface Provided
Connector Type :RJ-45
Location :1 in front
Qty :1
Type :VGA
Location :1 rear
Location :2 in front
Qty :2
Type :USB 2.0
Location :2 rear
Type :USB 3.0
Type :LAN (10 Gigabit Ethernet) (SFP+)
Type :LAN (Gigabit Ethernet)
Type :Management
Type :Serial
Mainboard
Chipset Type :Intel C612
Processor Socket :LGA2011-v3 Socket
Miscellaneous
Color Category :Gray
Height (Rack Units) :1U Rack Mount
Networking
Compliant Standards :IEEE 802.1p, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.3ae, IEEE 802.3x
Data Link Protocol :10 Gigabit Ethernet, 10Gb Fibre Channel over Ethernet (FCoE), Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet Controller(s) :Cisco UCS Virtual Interface Card 1227, Intel I350
Ethernet Ports :2 x Gigabit Ethernet, 2 x SFP+
Form Factor :Plug-in module
Remote Management Controller :Cisco Integrated Management Controller
Remote Management Protocol :CLI, IPMI 2.0
Optical Storage
Drive Type :No optical drive
Type :None
Optical Storage (2nd)
Type :None
Power Device
Installed Qty :2
Max Supported Qty :2
Power Provided :770 Watt
Power Redundancy :Yes
Power Redundancy Scheme :1+1
Type :Power supply
Printer
Type :None
Processor
Clock Speed :2.4 GHz
Installed Qty :2
Manufacturer :Intel
Max Supported Qty :2
Max Turbo Speed :3.2 GHz
Number of Cores :8-core
Processor Main Features :Hyper-Threading Technology, Intel Turbo Boost Technology 2
Processor Number :E5-2630V3
Server Scalability :2-way
Type :Xeon
RAM
Configuration Features :4 x 16 GB
Data Integrity Check :ECC
Empty Slots :20
Features :Dual rank, Memory Mirroring, Registered
Form Factor :DIMM 288-pin
Installed Size :64 GB
Max Supported Size :384 GB
Memory Specification Compliance :PC4-17000
Memory Speed :1866 MHz
Rated Memory Speed :2133 MHz
Slots Qty :24 DDR4 Slots
Technology :DDR4 SDRAM
