Bay Provided
Form Factor :2.5″ SFF
Total Qty :2 Bays
Form Factor :3.5″ LFF
Free Qty :0
Total Qty :60 Bays
Cache Memory
Installed Size :60 MB
Per Processor Size :30 MB
Chassis
Form Factor :Rack-mountable
Hot Swap Bays Qty :58
Manufacturer Form Factor :Rack-mountable
Server Storage Bays :Hot-swap
Server Swappable Drive Form Factor :3.5″
Server Swappable Drive Form Factor (metric) :8.9 cm
Server Swappable Drive Interface :SAS
Dimensions & Weight
Depth :32 in
Height :6.9 in
Width :17.5 in
Display
Type :None.
Expansion Bays
Form Factor (metric) :6.4 cm
Type :Hot-swap
Form Factor (metric) :6.4 cm SFF
Expansion Slots
Type :CPU
Type :DIMM 240-pin
Type :Expansion slot
Hard Drive
Installed Qty :2
Interface Class :Serial ATA
Type :SSD
Hard Drive (2nd)
Capacity :4 TB
Installed Qty :60
Interface Class :Serial Attached SCSI
Removable :Hot-swap
Spindle Speed :7200 rpm
Type :HDD
Hard Drive (3rd)
Type :None
Header
Brand :Cisco
Compatibility :PC
Manufacturer :Cisco Unified Computing

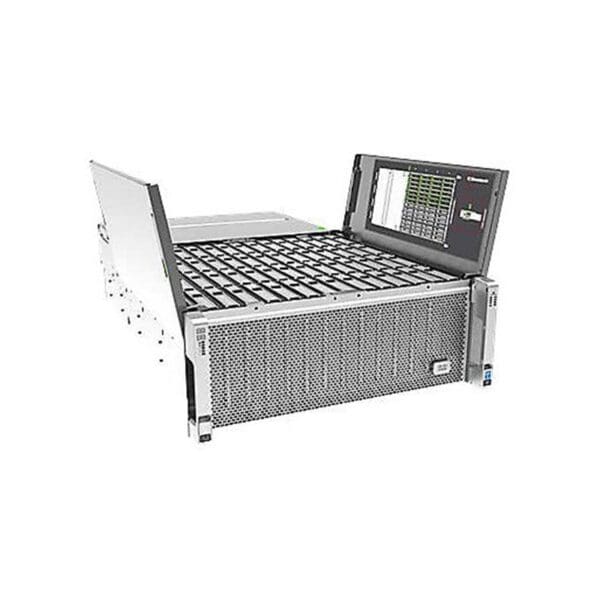

Model :C3160 Rack Server
Packaged Quantity :1
Product Line :Cisco UCS
Interface Provided
Qty :1
Type :KVM
Mainboard
Processor Socket :LGA2011 Socket
Miscellaneous
Color Category :Silver
Height (Rack Units) :4
Included Accessories :Rack rail kit
Networking
Compliant Standards :IEEE 802.1p, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.3ae, IEEE 802.3x
Data Link Protocol :10 Gigabit Ethernet, 10Gb Fibre Channel over Ethernet (FCoE)
Ethernet Controller(s) :2 x Cisco UCS Virtual Interface Card 1227
Ethernet Ports :8 x Gigabit Ethernet, 4 x SFP+
Optical Storage
Drive Type :No optical drive
Type :None
Optical Storage (2nd)
Type :None
OS Provided
Type :No operating system
Power Device
Frequency Required :50/60 Hz
Max Supported Qty :4
Nominal Voltage :AC 120/230 V
Power Redundancy :Yes
Power Redundancy Scheme :2+2
Type :Power supply – hot-plug
Printer
Type :None
Processor
Clock Speed :2.4 GHz
Installed Qty :2
Manufacturer :Intel
Max Supported Qty :2
Max Turbo Speed :3.2 GHz
Number of Cores :12-core
Processor Number :E5-2695V2
Server Scalability :2-way
Type :Xeon
