Chassis
Form Factor :Rack-mountable
Supported Blades Qty :8
Cooling System
Features :Hot-swap
Quantity :8
Type :Fan
Dimensions & Weight
Depth :32 in
Height :10.5 in
Width :17.5 in
Environmental Parameters
Humidity Range Operating :5 – 93% (non-condensing)
Max Operating Temperature :95 °F
Min Operating Temperature :50 °F
Header
Brand :Cisco
Bundled with :2 x Fabric Extender Cisco UCS 2304XP
Compatibility :PC
Manufacturer :Cisco Unified Computing
Model :SmartPlay Select
Packaged Quantity :1
Product Line :Cisco UCS

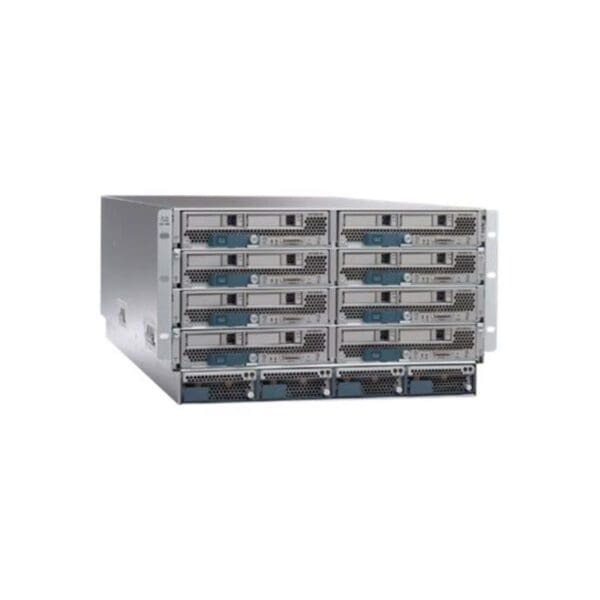

UCS 5108 Blade Server Chassis
Miscellaneous
Color Category :Gray
Compliant Standards :AS/NZS 60950-1, BSMI CNS 13438 Class A, CISPR 22 Class A, CISPR 24, CSA C22.2 No. 60950-1, EN 300 386, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN50082-1, EN55022 Class A, EN55024, FCC CFR47 Part 15, ICES-003 Class A, IEC 60950-1, UL 60950-1, VCCI Class A ITE
Height (Rack Units) :6U Rack Mount
Included Accessories :4 x10GBASE-CU SFP+ copper twinax passive cable 3m, 8 x blade slot blanking panel, Accessory kit
Power Device
Installed Qty :4
Max Supported Qty :4
Nominal Voltage :DC -45 -60 V
Power Provided :2500 Watt
Type :Power supply – hot-plug
