Bay Provided
Form Factor :2.5″ SFF
Free Qty :2
Total Qty :2 Bays
Cache Memory
Installed Size :44 MB
Installed Size :44
Per Processor Size :22 MB
Per Processor Size :22
Type :L3 cache
Card Reader
Supported Flash Memory Cards :SD Memory Card
Chassis
Form Factor :Blade Server
Hot-Swap Bays Qty :2
Manufacturer Form Factor :Blade
Server Storage Bays :Hot swap
Server Swappable Drive Form Factor :2.5″
Server Swappable Drive Form Factor (metric) :6.4 cm
Server Swappable Drive Interface :SATA/SAS
Dimensions & Weight
Depth :24.4 in
Height :2 in
Weight :9.5 lbs
Width :8 in
Display
Type :None.
Environmental Parameters
Humidity Range Operating :5 – 93% (non-condensing)
Max Operating Temperature :95 °F
Min Operating Temperature :50 °F
Expansion Bays
Form Factor (metric) :6.4 cm SFF
Type :Hot-swap
Expansion Slots
Type :Expansion slot
Type :M.2 Card
Type :SD card
Hard Drive
Type :No HDD
Hard Drive (2nd)
Type :None
Hard Drive (3rd)
Type :None
Header
Brand :Cisco
Manufacturer :Cisco Unified Computing

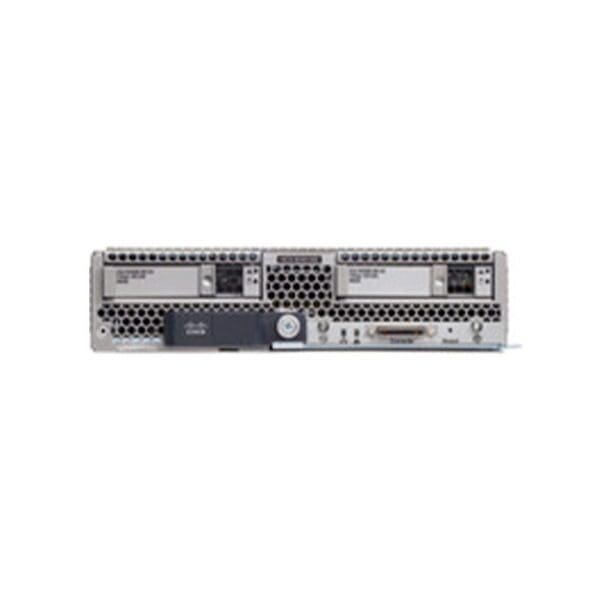

Model :SmartPlay Select B200 M5
Packaged Quantity :1
Product Line :Cisco UCS
Interface Provided
Connector Type :QSFP
Qty :2
Type :40Gb FCoE
Location :1 internal
Type :USB 3.0
Qty :1
Type :KVM
Miscellaneous
Color Category :Gray
Compliant Standards :ACPI 4.0
Included Accessories :Blanking panel, CPU Heatsink
Networking
Ethernet Controller(s) :Cisco UCS Virtual Interface Card 1340
Ethernet Ports :2 x 40 Gigabit FCoE
Remote Management Controller :Cisco Integrated Management Controller
Optical Storage
Drive Type :No optical drive
Type :None
Optical Storage (2nd)
Type :None
OS Provided
Type :No operating system
Printer
Type :None
Processor
Clock Speed :2.1 GHz
Installed Qty :2
Manufacturer :Intel
Max Supported Qty :2
Max Turbo Speed :3.7 GHz
Number of Cores :16-core
Processor Number :6130
Server Scalability :2-way
Type :Xeon Gold
Upgradability :Upgradable
RAM
Configuration Features :6 x 32 GB
Empty Slots :18
Features :Registered
Form Factor :DIMM 288-pin
Installed Size :192 GB
Installed Size :192
Max Supported Size :3072 GB
Max Supported Size :3072
Memory Speed :2666 MHz
Slots Qty :24 DDR4 Slots
Technology :DDR4 SDRAM
