Bay Provided
Form Factor :2.5″ SFF
Free Qty :2
Total Qty : 2 Bays
Cache Memory
Installed Size :40 MB
Per Processor Size :20 MB
Card Reader
Supported Flash Memory Cards :SD Memory Card
Chassis
Form Factor :Blade
Hot-Swap Bays Qty :2
Manufacturer Form Factor : Blade Server
Server Storage Bays :Hot swap
Server Swappable Drive Form Factor :2.5″
Server Swappable Drive Form Factor (metric) :6.4 cm
Server Swappable Drive Interface : SAS
Dimensions & Weight
Depth :24.4 in
Height :2 in
Width :8 in
Display
Type :None.
Environmental Parameters
Humidity Range Operating :5 – 93% (non-condensing)
Max Operating Temperature :95 °F
Min Operating Temperature :50 °F
Expansion Bays
Form Factor (metric) :6.4 cm SFF
Type :Hot-swap
Expansion Slots
Type :CPU
Type :DIMM 288-pin
Type :Expansion slot
Type :SD card
Hard Drive
Type :No HDD
Hard Drive (2nd)
Type :None
Hard Drive (3rd)
Type :None
Header
Brand :Cisco
Compatibility :PC
Manufacturer :Cisco Unified Computing

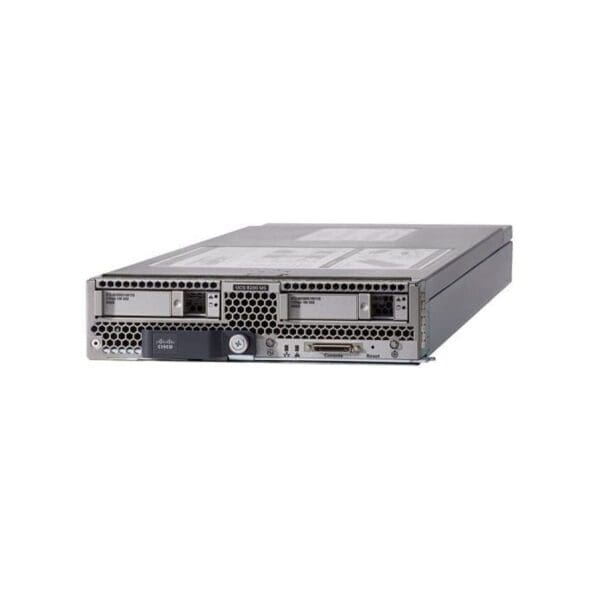

Model :B200 M4 Blade Server (Not sold Standalone )
Packaged Quantity :1
Product Line :Cisco UCS
Interface Provided
Location :1 internal
Type :USB 2.0
Qty :1
Type :KVM
Mainboard
Chipset Type :Intel C612
Processor Socket :LGA2011-v3 Socket
Miscellaneous
Color Category :Gray
Compliant Standards :AS/NZS 60950-1, BSMI CNS 13438 Class A, CISPR 22 Class A, CISPR 24, CSA C22.2 No. 60950-1 Second Edition, Directive 2004/108/EC, Directive 2006/95/EC, EN 300386, EN 60950-1 Second Edition, EN 61000-3-2, EN 61000-3-3, EN55022 Class A, EN55024, GB 4943, ICES-003 Class A, IEC 60950-1 Second Edition, KN22 Class A, KN24, UL 60950-1 Second Edition, VCCI Class A
Included Accessories :2 x CPU Heatsink
Networking
Compliant Standards :IEEE 802.1p, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.3ae, IEEE 802.3x
Data Link Protocol :10 Gigabit Ethernet, 10Gb Fibre Channel over Ethernet (FCoE)
Ethernet Controller(s) :Cisco UCS Virtual Interface Card 1340
Ethernet Ports :4 x 10 Gigabit Ethernet
Form Factor :Plug-in module
Remote Management Controller :Cisco Integrated Management Controller
Optical Storage
Drive Type :No optical drive
Type :None
Optical Storage (2nd)
Type :None
OS Provided
Type :No operating system
Printer
Type :None
Processor
Clock Speed :2.4 GHz
Installed Qty :2
Manufacturer :Intel
Max Supported Qty :2
Max Turbo Speed :3.2 GHz
Number of Cores :8-core
Processor Main Features :Hyper-Threading Technology, Intel Turbo Boost Technology 2
Processor Number :E5-2630V3
Server Scalability :2-way
Type :Xeon
RAM
Configuration Features :8 x 16 GB
Data Integrity Check :ECC
Empty Slots :16
Features :Dual rank, Registered
Form Factor :DIMM 288-pin
Installed Size :128 GB
Max Supported Size :384 GB
Memory Specification Compliance :PC4-17000
Memory Speed :1866 MHz
Rated Memory Speed :2133 MHz
Slots Qty : 24 DDR4 Slots
Technology :DDR4 SDRAM
