Bay Provided
Form Factor :2.5″
Free Qty :18
Total Qty :18
Form Factor :3.5″
Free Qty :56
Total Qty :56
Chassis
Form Factor :Rack-mountable
Front Accessible Bays Qty :70
Hot-Swap Bays Qty :74 Bays
Manufacturer Form Factor :Rack-mountable
Server Storage Bays :Hot swap
Server Swappable Drive Form Factor :2.5″, 3.5″
Server Swappable Drive Form Factor (metric) :6.4 cm, 8.9 cm
Server Swappable Drive Interface :SATA/SAS
Dimensions & Weight
Depth :32 in
Height :6.9 in
Weight :195 lbs
Width :17.5 in
Display
Type :None.
Environmental Parameters
Humidity Range Operating :10 – 90% (non-condensing)
Max Operating Temperature :95 °F
Min Operating Temperature :41 °F
Expansion Bays
Form Factor (metric) :6.4 cm
Type :Hot-swap
Form Factor (metric) :8.9 cm
Expansion Slots
Type :CPU
Type :Expansion slot
Hard Drive
Type :No HDD
Hard Drive (2nd)
Type :None
Hard Drive (3rd)
Type :None
Header
Brand :Cisco
Compatibility :PC
Manufacturer :Cisco Unified Computing

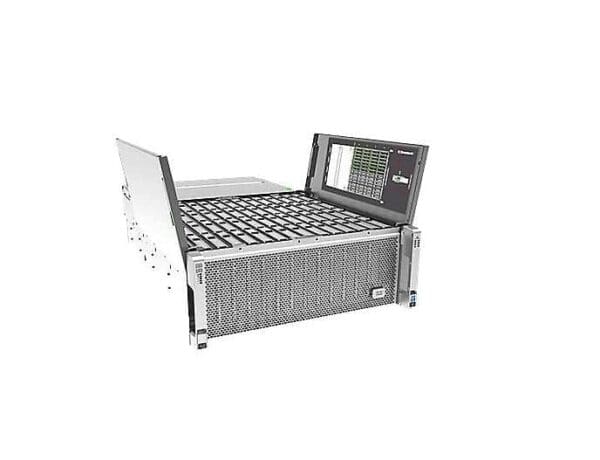

Model :C3260 Dense Storage Server
Packaged Quantity :1
Product Line :Cisco UCS
Interface Provided
Connector Type :RJ-45
Location :4 rear
Qty :4
Type :LAN (40 Gigabit Ethernet) (QSFP+)
Location :1 internal
Qty :1
Type :USB 2.0
Location :1 rear
Type :KVM
Location :2 rear
Qty :2
Type :USB 3.0
Type :Management
Miscellaneous
Color Category :Gray
Compliant Standards :AS/NZS 60950-1, AS/NZS CISPR22:2004 Class A, CAN/CSA-C22.2 No. 60950-1, CISPR 22 Class A, CISPR 24, Directive 2004/108/EC, Directive 2006/95/EC, EN 300 386, EN 300386, EN 55022 Class A, EN 60950-1 Second Edition, EN 61000-3-2, EN 61000-3-3, EN55024, FCC CFR47 Part 15 A, ICES-003 Class A, IEC 60950-1 Second Edition, KN22 Class A, KN24, UL 60950-1 Second Edition, VCCI Class A
Height (Rack Units) :4u Rack mount
Included Accessories :Rack rail kit
Modem
Type :None
Optical Storage
Drive Type :No optical drive
Type :None
Optical Storage (2nd)
Type :None
OS Provided
Type :No operating system
Power Device
Frequency Required :47 – 63 Hz
Installed Qty :0
Max Supported Qty :4
Nominal Voltage :AC 230 V
Power Provided :1050 Watt
Power Redundancy Scheme :2+2
Type :Power supply – hot-plug
Printer
Type :None
Processor
Max Supported Qty :2
Server Scalability :2-way
Type :No CPU
RAM
Data Integrity Check :ECC
Empty Slots :16
Features :Registered
Installed Size :0 GB
Installed Size :0
Slots Qty :16
