General Information

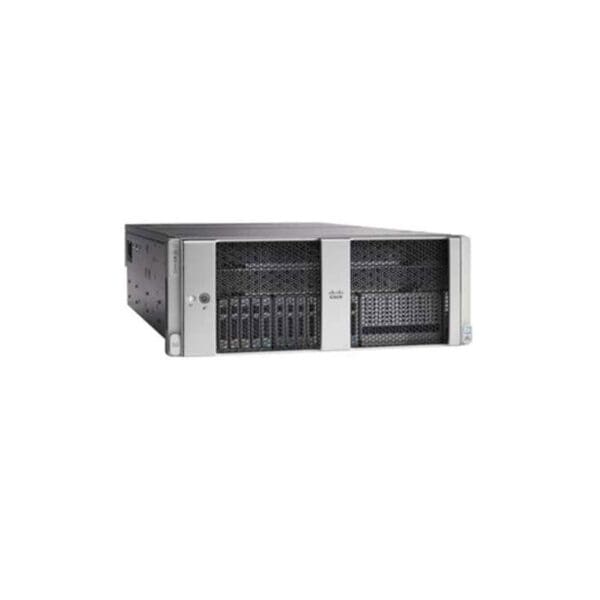

Product Name Distribution Ucs C480 M5 Standard Base Chassis with HS
Manufacturer Part Number UCSC-C480-M5-CH
Product Series C480 M5
Product Type Barebone System
Interfaces/Ports
Total Number of USB Ports 4
Number of USB 3.0 Ports 3
Controllers
Controller Type 12Gb/s SAS
Serial SATA
RAID Supported Yes
Display & Graphics
Graphics Memory Capacity 256 MB
I/O Expansions
Number of Total Expansion 32 Bays
Number of Internal 2.5″ Bays 32
Number of Total Expansion Slots 12
Number of PCI Express x8 Slots 6
Number of PCI Express x16 Slots 6
Memory
Maximum Memory 18 TB
Memory Technology DDR4 SDRAM
Memory Standard DDR4-2666/PC4-21300
Number of Total Memory Slots 48 DDR4 Slots
Intel Optane Memory Ready Yes
Network & Communication
Ethernet Technology 10 Gigabit Ethernet
Power Description
Input Voltage 120 V AC
230 V AC
Maximum Power Supply Wattage 1600 W
Processor & Chipset
Number of Processors Supported 4
Processor Supported Xeon Gold
Xeon Platinum
Xeon Silver
Xeon Bronze
64-bit Processing Yes
Chipset Manufacturer Intel
Chipset Model C620
Physical Characteristics
Form Factor Rack-mountable
Rack Height 4U Rack Mount
Height 6.9″
Width 19″
Depth 32.7″
